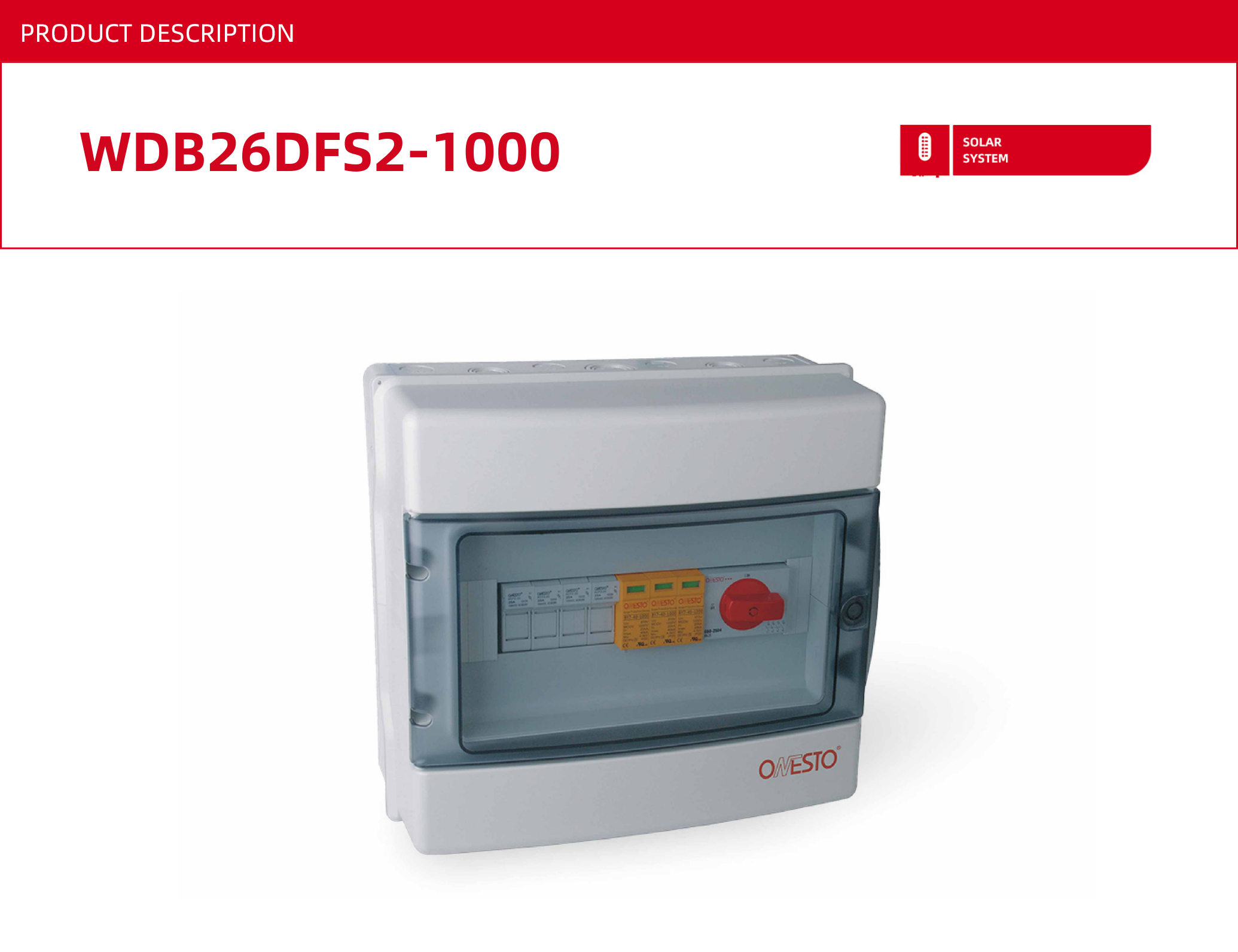

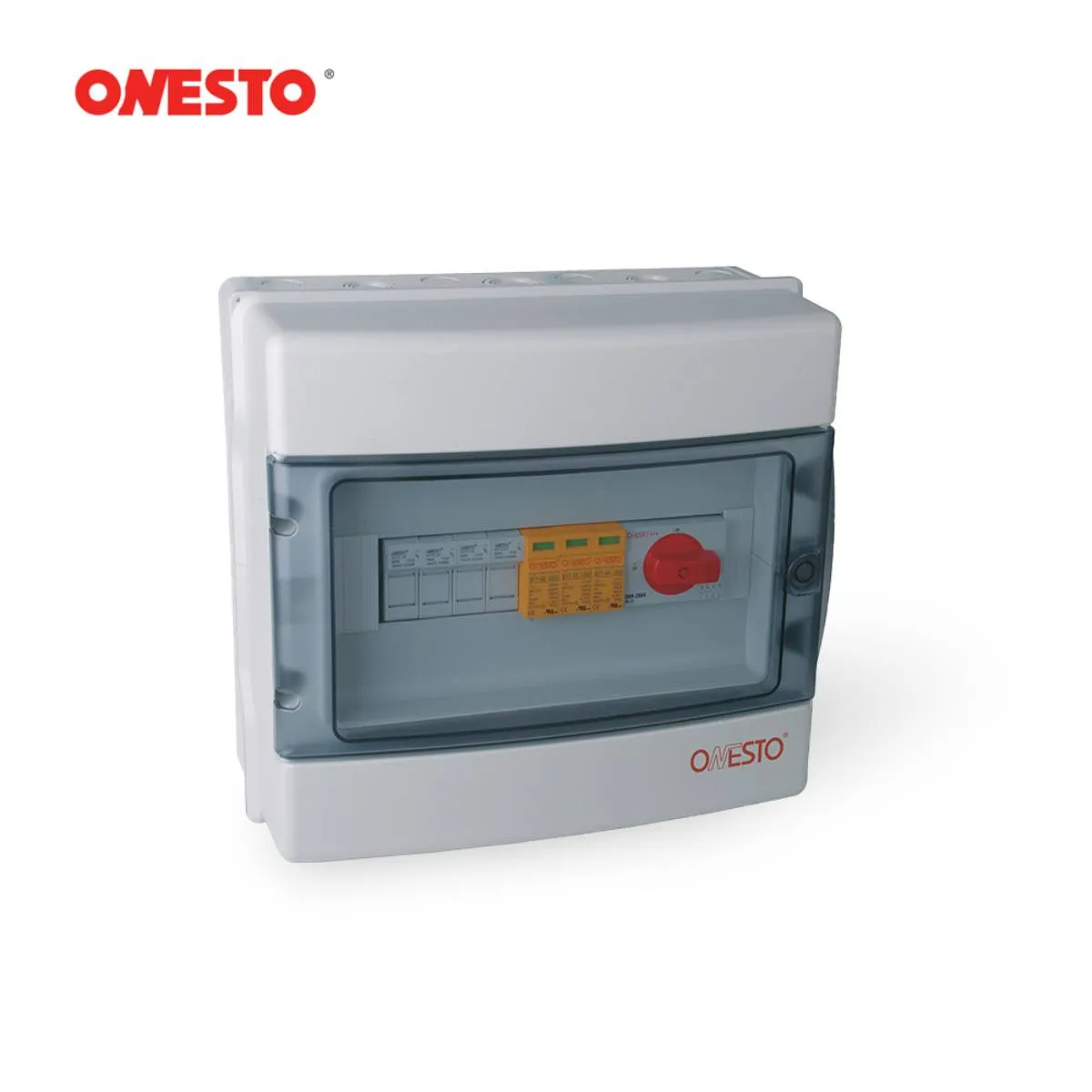

Solar PV String Box Isolation Box 2 In 1 Out DC1000V 25A with Fuse and Surge Protection

2 In 1 Out Solar Combiner Box

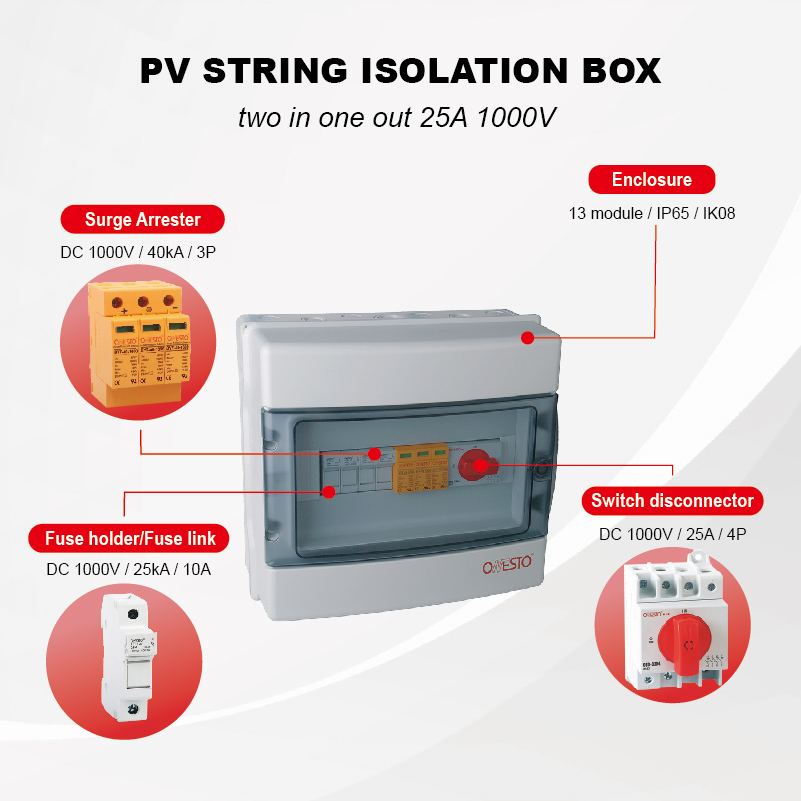

Consists of

-Enclosure 13 modules IP65

-Switch disconnector DC1000V/25A/4P

-Fuse disconnector w/fuse DC1000V/10A

-Surge arrester DC1000V/40kA/3P

For Purpose of

-String isolation

-Overcurrent protection

-Overvoltage protection

Descriptions

Description	No.of input	No.of output	MPPT	Max. voltage	Max. current
Two in one out 25A 1000V DC Pre-wired PV string box	2	1	1	1000V DC	25A

Switch disconnector	ODD-25D4	Fuse disconnector	KCF2-25 / PVCF10
No.of pole	4	Rated voltage of fuse (Ue)	1000V DC
Rated insulation voltage (Ui)	1000V DC	Rated current of fuse (Ie)	10A
Rated current (Ie)	25A	Fuse size	10×38mm
Rated impulse withstand voltage (Uimp)	8kV	Rated breaking capacity	25kA
Category	DC21B	Class of operation	gPV
Standard compliance	IEC 60947-3	Standard compliance	IEC 60947, IEC 60269
Certificate	TUV , SAA	Certificate	TUV

Surge arrester	BY7-40/3 -1000	Enclosure	WDB13
Classification	Type 2	No.of module	9
Maximum operation voltage (Ucpv)	1000VDC	Material	PC / ABS
Maximum discharge current (80/20µs) (Imax)	40kA	Protection degree(IEC60529)	IP65
Norminal discharge current (80/20µs) (In)	20kA	Impact resistance (IEC62262)	IK08
Short-circuit current rating (Iscpv)	500A	Color	RAL7035
Voltage protection level (Up)	4.5kV	Dimension(mm)	305×285×145
Standard compliance	UI1449, IEC50539	Standard compliance	IEC 62208
Certificate	UL , TUV	Certificate	CE
