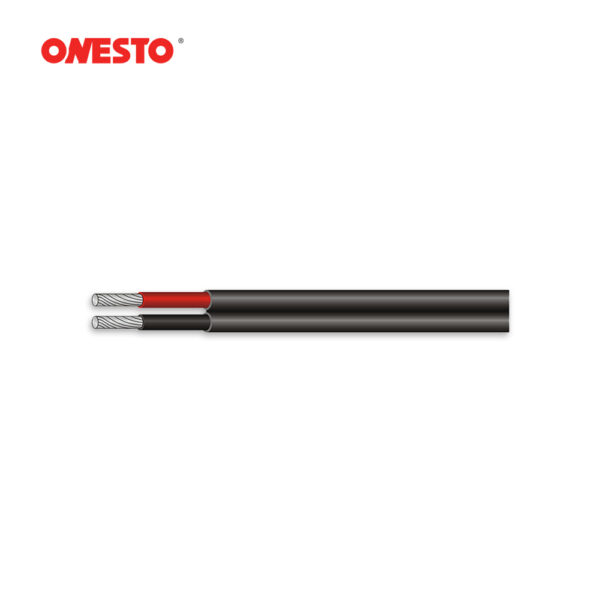

for solar panel system
| Type | 2X1.5 | 2X4.0 | 2X6.0 | 2X10.0 |
| Conductor construction (n/mm) | 47/0.25 | 52/0.30 | 78/0.30 | 84/0.40 |
| Conductor outer diameter (mm) | 1.98 | 2.35 | 3.06 | 3.92 |
| Cable outer diameter (mm) | 4.2×86 | 4.6×9.4 | 5.3×10.8 | 8.3×16.9 |
| Conductor resistance (20℃) Ω/km | 8.21 | 5.09 | 3.39 | 1.95 |
| Current carring capacity( 60℃) A | 41 | 55 | 70 | 98 |
| Rated voltage | DC 1.8 kV AC 0.6/1.0kV | |||
| Ambient temperature range | -40℃ to +90℃ | |||
| Max. conductor temperature | +120 ℃ | |||
| Reference short circuit temp. | 200℃, 5s | |||
| Service life | ＞25 years | |||
| Colours | Black , Red | |||
| Impulse withstand voltage | DC 15 kV AC 6.5kV , 5min | |||
| Min bending radius | ≥4x Φ(D＜8mm) , ≥6x Φ(D≥8mm) | |||
#dc cable
