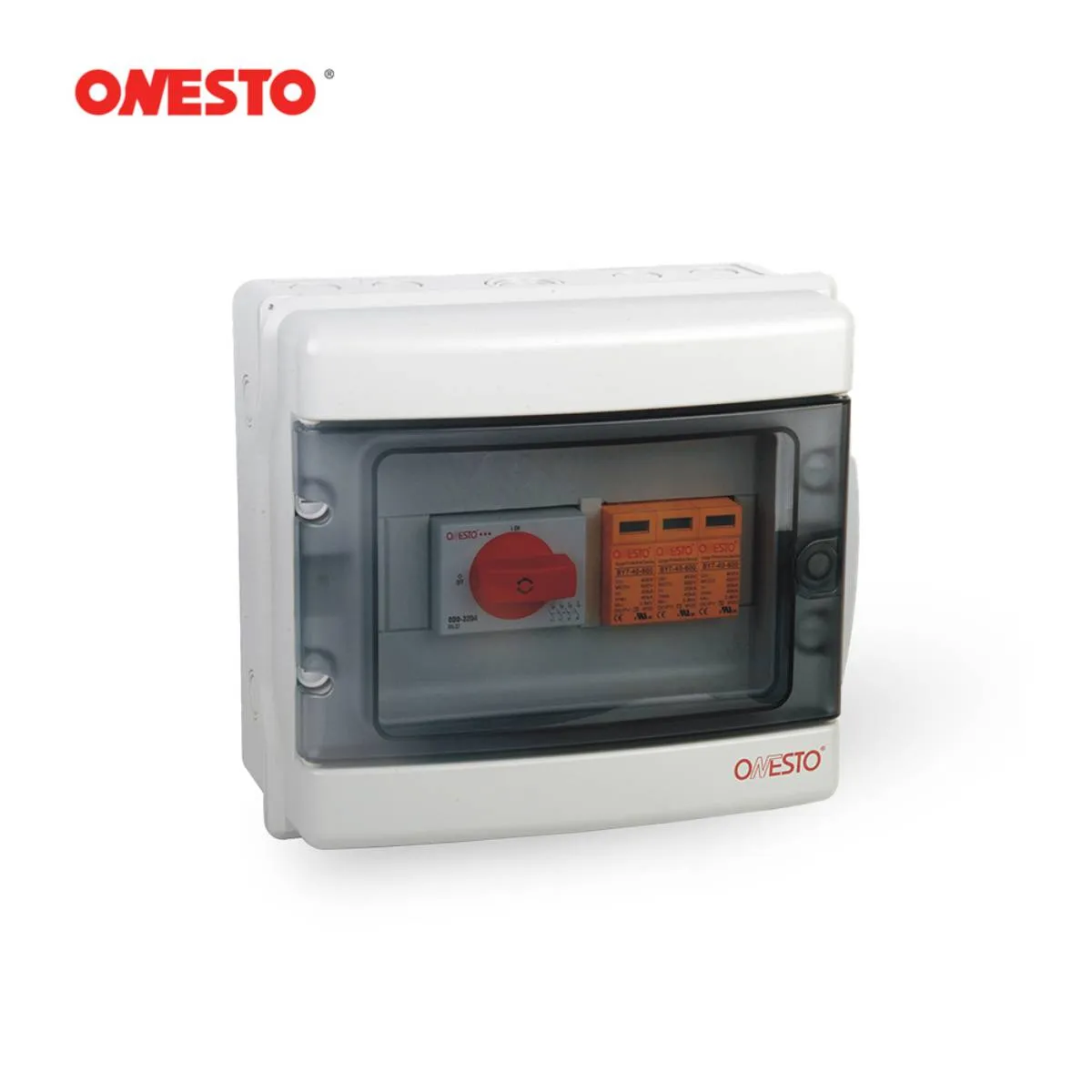

2 In 1 Out Solar Combiner Box

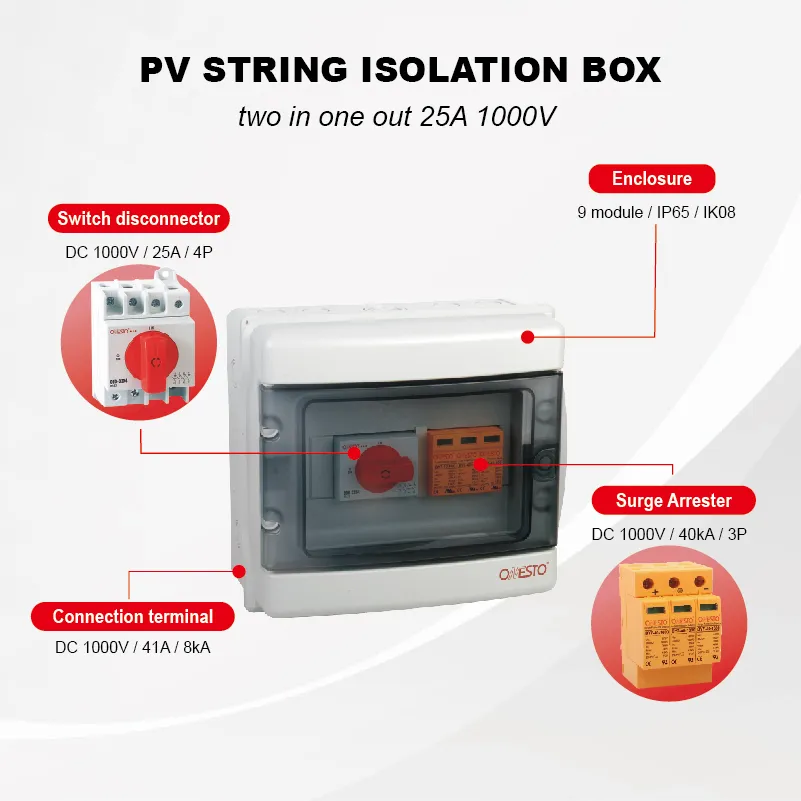

PV String Isolation Box with Surge Protection
| Description | No.of input | No.of output | MPPT | Max. voltage | Max. current |
| Two in one out 25A 1000V DC Pre-wired PV string box | 2 | 1 | 1 | 1000V DC | 25A |
| Switch disconnector | ODD-25D4 | Connection terminal | IEC rating | UL rating | |
| No.of pole | 4 | Rated voltage | 1000V | 600V | |
| Rated insulation voltage (Ui) | 1000V DC | Rated current | 41A | 40A | |
| Rated current (Ie) | 25A | Connection (Solid wire) wire range (Stranded wire) | 0.2-10mm² | 24-8AWG | |
| Rated impulse withstand voltage (Uimp) | 8kV | 0.2-6mm² | 24-10AWG | ||
| Category | DC21B | Rated impulse withstand voltage | 8kV | – | |
| Standard compliance | IEC 60947-3 | Standard compliance | IEC 60947-7-1 | UL 1059 | |
| Certificate | TUV, SAA | Certificate | CE | UL |
| Surge arrester | BY7-40/3 -1000 | Enclosure | WDB9 | |
| Classification | Type 2 | No.of module | 9 | |
| Maximum operation voltage (Ucpv) | 1000VDC | Material | PC / ABS | |
| Maximum discharge current (80/20µs) (Imax) | 40kA | Protection degree(IEC60529) | IP65 | |
| Norminal discharge current (80/20µs) (In) | 20kA | Impact resistance (IEC62262) | IK08 | |
| Short-circuit current rating (Iscpv) | 500A | Color | RAL7035 | |
| Voltage protection level (Up) | 4.5kV | Dimension(mm) | 233×213×112 | |
| Standard compliance | UI1449, IEC50539 | Standard compliance | IEC 62208 | |
| Certificate | UL , TUV | Certificate | CE |
