DC Switch Disconnector 1000V Din Rail Mounting Isolator Switch

ODD Series for PV System

- No.of pole: 2P , 2+2P , 4P
- Rated voltage: 300V, 500V , 600V , 800V , 1000V , 1200VDC
- Rated current: 16A, 25A, 32A
- Rated insulation voltage: 1000V
- Rated impulse withstand voltage: 8kV
- Utilization category: DC-21B / DC-PV1 / DC-PV2
- Comply with IEC60947-3

Descriptions

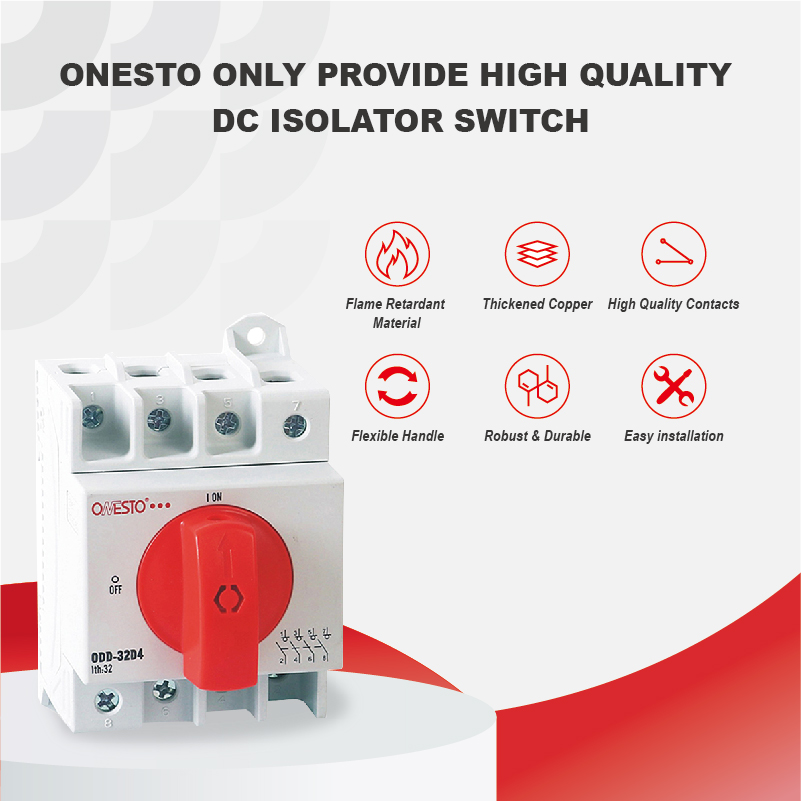

ONESTO DC isolator switch, provides 2P/2+2P/4P multi-pole configuration, covers 300V-1200VDC wide voltage range, supports 16A/25A/32A current level. It is IEC60947-3 certified, has 1000V insulation voltage and 8kV impact resistance, complies with DC-21B/DC-PV1/DC-PV2 application categories, and is designed for photovoltaic systems, energy storage equipment and industrial DC circuits.

Din Rail / Panel Mounting for DC-PV2
No.of pole	300V	600V	800V	1000V	1200V	Din Rail Type	Panel Type
2	16A	16A	9A	5A	4A	ODD-16D2	ODD-16P2
2+2	25A	25A	/	/	/	ODD-16D22	ODD-16P22
4	16A	16A	16A	16A	13.5A	ODD-16D4	ODD-16P4
2	25A	25A	11A	6A	5A	ODD-25D2	ODD-25P2
2+2	32A	25A	/	/	/	ODD-25D22	ODD-25P22
4	25A	25A	25A	25A	21A	ODD-25D4	ODD-25P4
2	32A	32A	13A	9A	6A	ODD-32D2	ODD-32P2
2+2	45A	40A	/	/	/	ODD-32D22	ODD-32P22
4	32A	32A	32A	32A	27A	ODD-32D4	ODD-32P4

Din Rail / Panel Mounting for DC-PV1 / DC-21B
No.of pole	500V	600V	800V	1000V	1200V	Din Rail Type	Panel Type
2	16A	16A	16A	9A	4A	ODD-16D2	ODD-16P2
2+2	29A	29A	16A	9A	4A	ODD-16D22	ODD-16P22
4	16A	16A	16A	16A	13.5A	ODD-16D4	ODD-16P4
2	25A	25A	20A	12A	5A	ODD-25D2	ODD-25P2
2+2	45A	45A	20A	12A	5A	ODD-25D22	ODD-25P22
4	25A	25A	25A	25A	21A	ODD-25D4	ODD-25P4
2	32A	32A	23A	13A	6A	ODD-32D2	ODD-32P2
2+2	50A	50A	23A	13A	6A	ODD-32D22	ODD-32P22
4	32A	32A	32A	32A	27A	ODD-32D4	ODD-32P4
