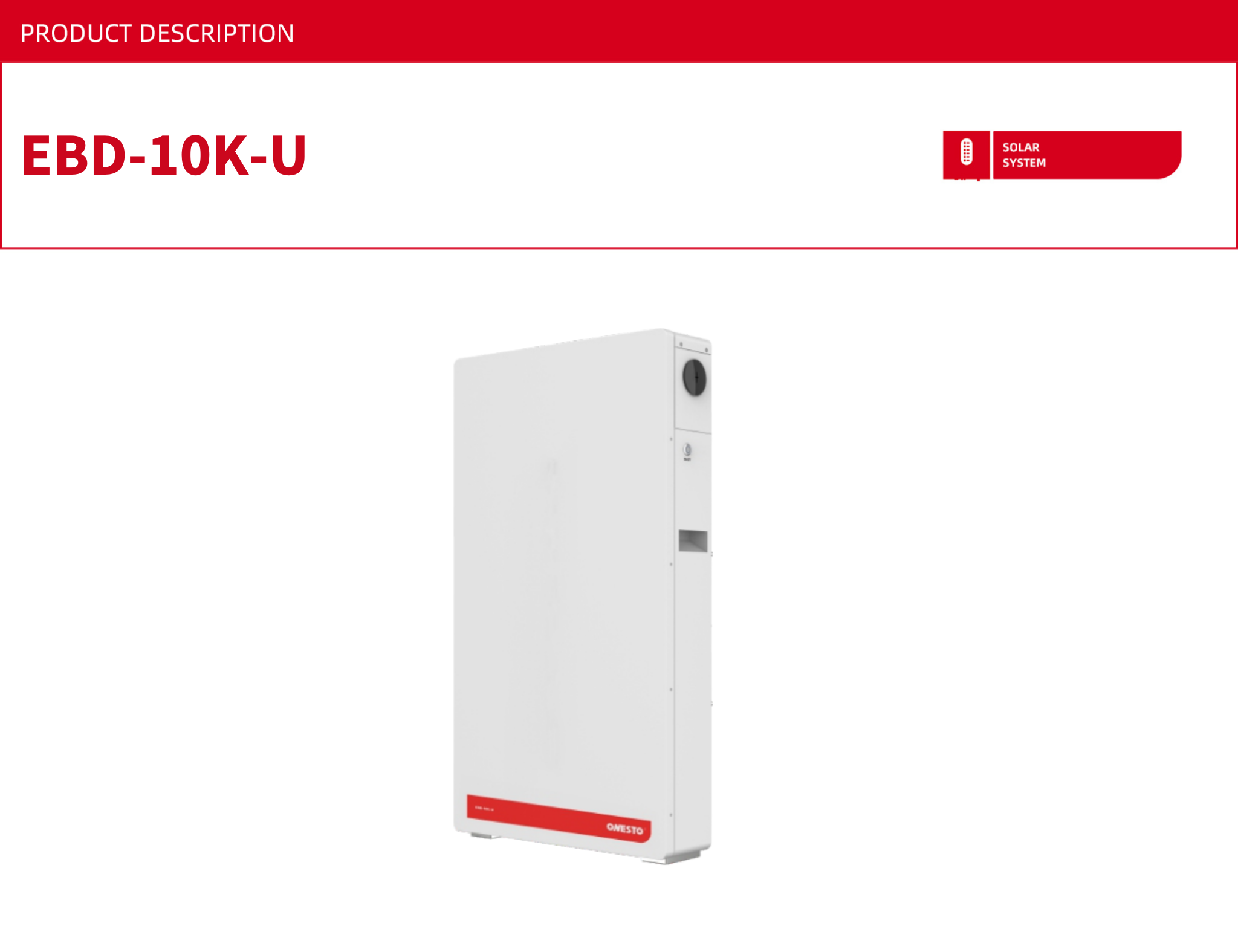

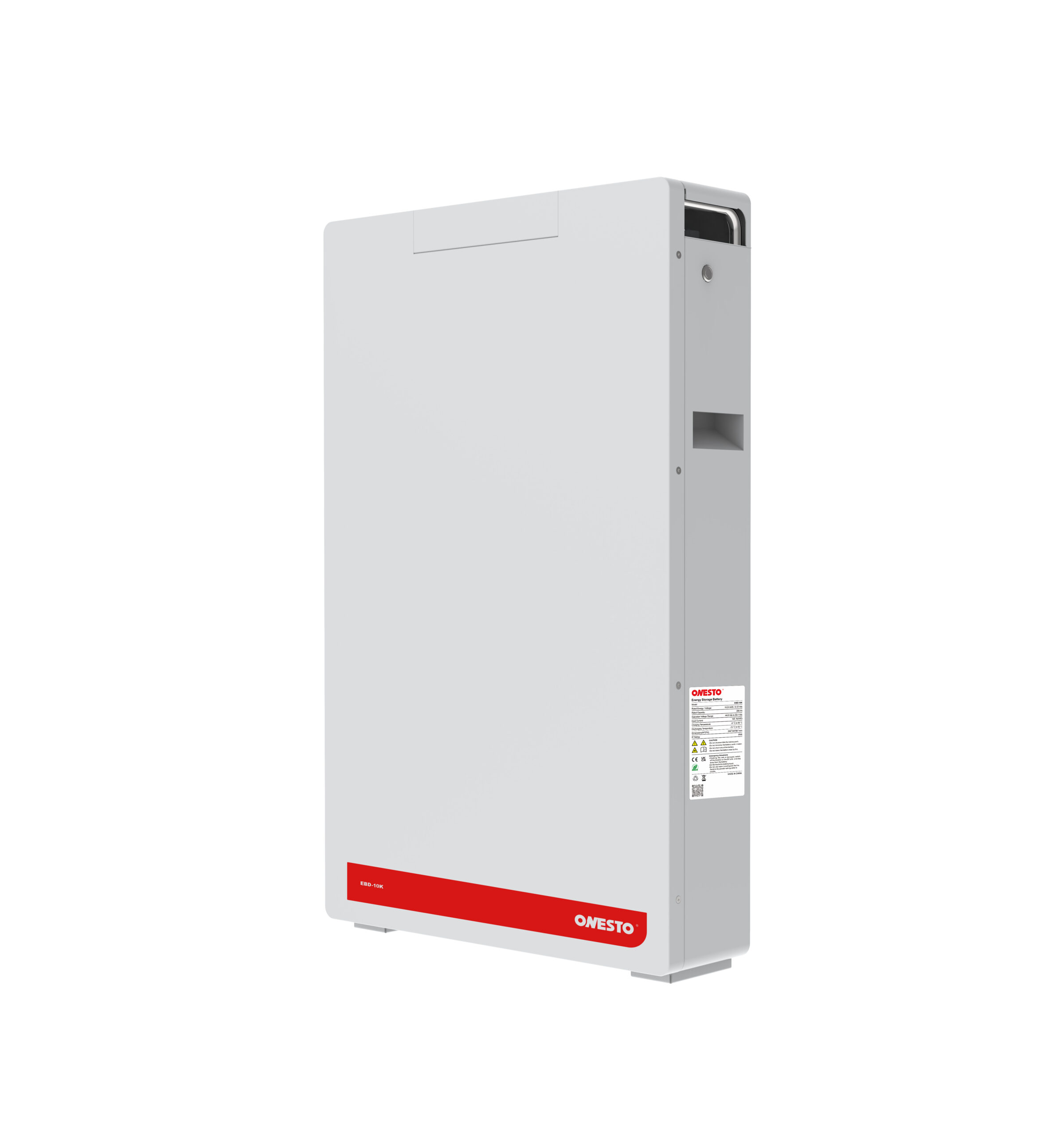

Low Voltage Solar Energy Storage Battery 51.2V 200Ah for PV System

With RoHS REACH UL

▾Safety (tier-1 LFP battery inside)
▾Rigorously tested (UL certificated)
▾Designed with flexibility and configurability (up to 16 units in parallel, supporting 160 kWh one time)
▾Self-heating at low temperature
▾Easy installation (automatically pack level configuration)

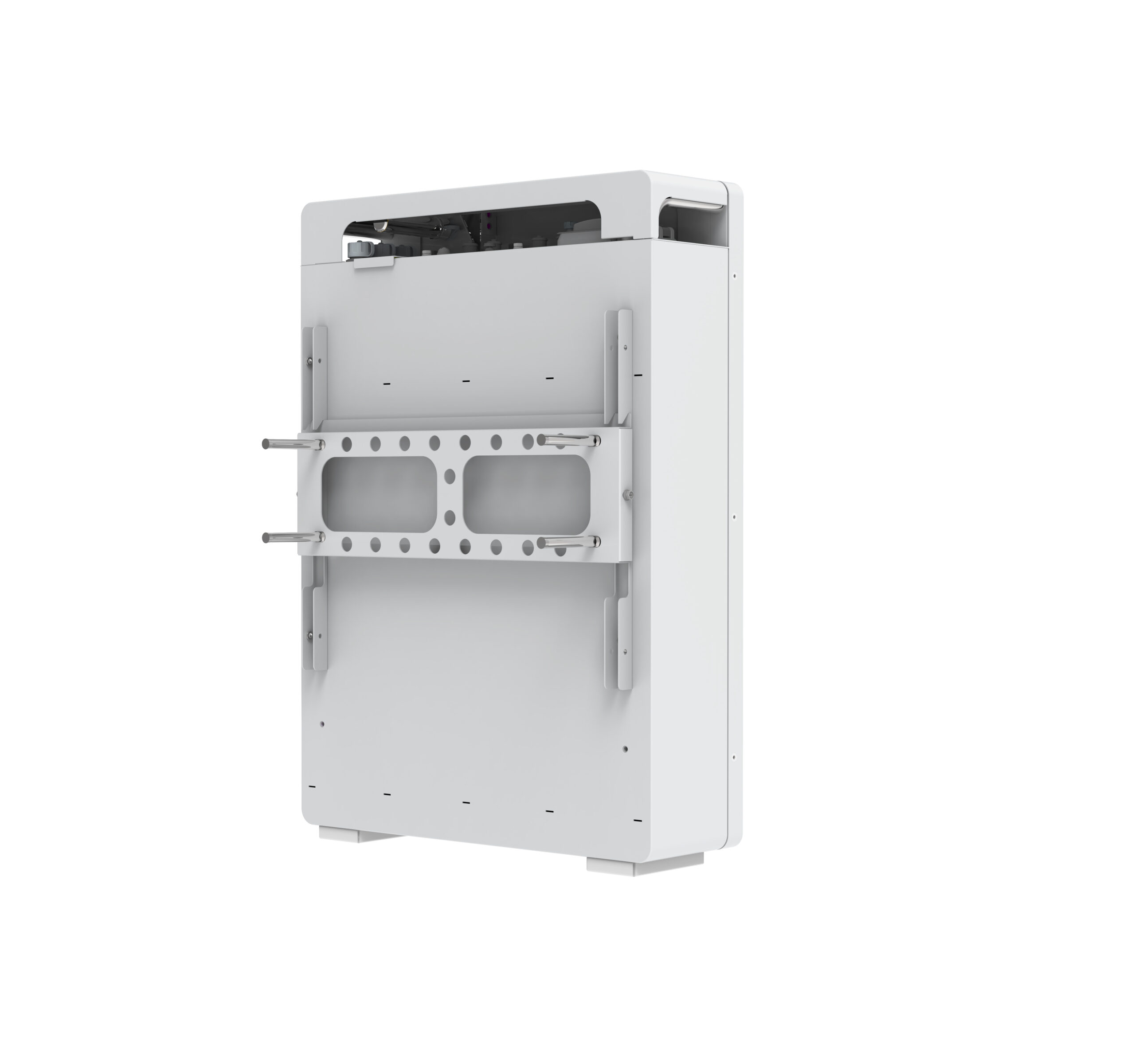

▾Outdoor installation (IP65)
▾Continuous upgrade (OTA)
▾10-year life span

Descriptions

Safe & Scalable Energy Storage Solution‌:
Our Low Voltage Solar Energy Storage Battery , Powered by ‌Tier-1 LFP battery technology‌ (UL-certified) for unmatched safety and reliability. Supports ‌parallel expansion up to 16 units‌ (160kWh total capacity), ideal for residential, commercial, or off-grid applications.

Model	EBD-10K-U
Rated Capacity	200Ah
Rated Voltage	51.2 V
Rated Current	0.6C,120 A
Working Voltage Range	44.8-58.4 V
Rated Energy	10.24kWh
Max. Parallel Quantity	Max. 16 sets in parallel ,163.84KWh
Standard Charging Current	0.6C , 120 A
Maximum Charging Continuous Current	0.6C , 120 A
Standard Discharge Current	0.6C , 120 A
Max Discharge Continuous Current	0.6C , 120 A
Battery Max Charge/Discharge Power	6.14 kW/6.14 kW
Max Discharge peak Current/Power	160 A / 8.19 kW, 1 min
Standard Charging Method	0.5C CC to 57.6 V; CV at 57.6 V Till Current Is 0.05C
Available SOC Range	0% ~ 100% (90% DOD is recommended)
SOC Transportation Range	50%
Dimensions [WDH]	550x165x1000mm(±5) / 21.7×6.5×39.4 inch
Weight	97Kg / ~213.8 Ibs
Operating Temperature1	Charging Temperature：23℉ ~ 131℉；Discharge Temperature：5℉ ~ 131℉
Storage Temperature2	5℉ ~ 131℉
Working Humidity	5~95% RH（Non-Condensing）
Altitude	≤ 6561 feet
Communication	CAN / Rs485 / Dry Contact / WiFi(option)
Certificate	UL9540A,UL1973,UN38.3
Designed Cycle Life	6000 (0.5C/80%DOD/80%SOH/1 cycle per day)
Designed Calendar Life	15 Years (Working Condition 0.5 C @ 25 deg C, 80% DoD, 1 cycle per day)
IP Grade	NEMA Type 4
Cooling	Natural cooling
Heating Power	Max. 230.4W
Environment protection standard	RoHS
