4 way 1 din rail
-Plug-in din rail for quick mounting -Reversible door opening from left or right -Plug-in PE/N terminal bar for easy wiring -Adjustable din rail for perfect fitting of components -PE/N terminal bar can be fitted on top or bottom of the board -Made of fire resistant polycarbonate with UV protection -Protection degree (IEC60529): IP65 -Impact resistance (IEC62262): IK08 -Rated insulation voltage: 400V AC -Body color: RAL7035 -Ambinent temperature: -25℃ to +70℃ -Electrical insulation Class II -Comply with IEC/EN 62208

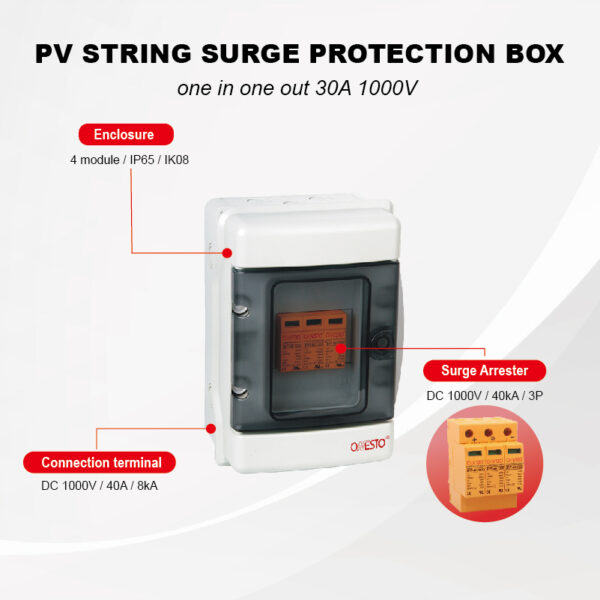

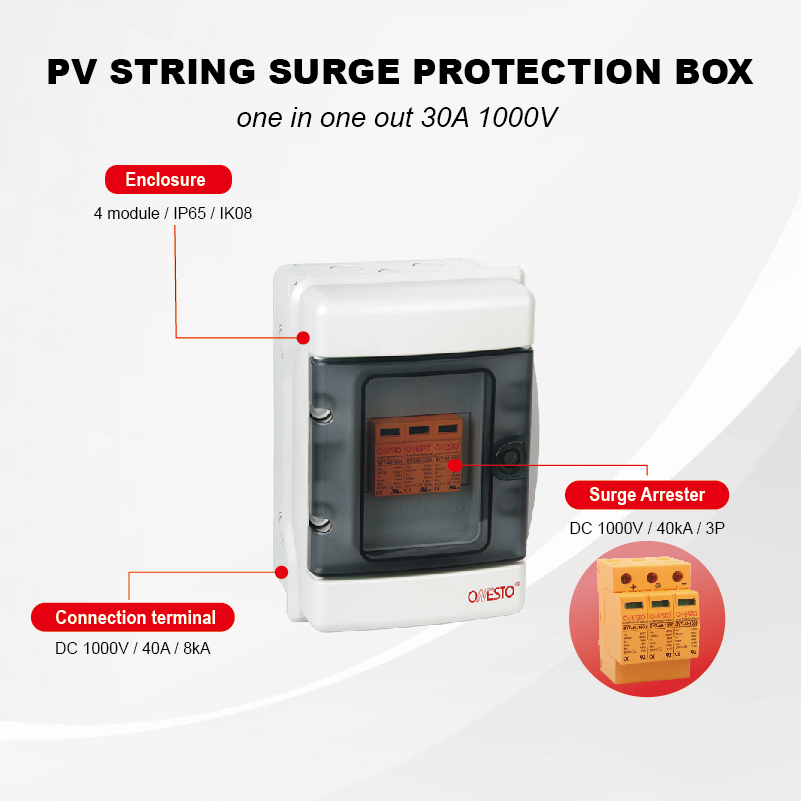

The WDB4 4-way IP65 distribution board is a distribution device designed for outdoor and humid environments. It has an IP65 level of protection, which can effectively resist the intrusion of dust and water, ensuring stable operation under various adverse weather conditions. The distribution box adopts a modular design, which is easy to install and maintain, and has a reasonable internal layout to meet the needs of 4-way electrical wiring. Its shell is made of fireproof and durable polycarbonate material with UV protection.
Description | Cat.Nos. | Size mm(WxHxD) | Type |

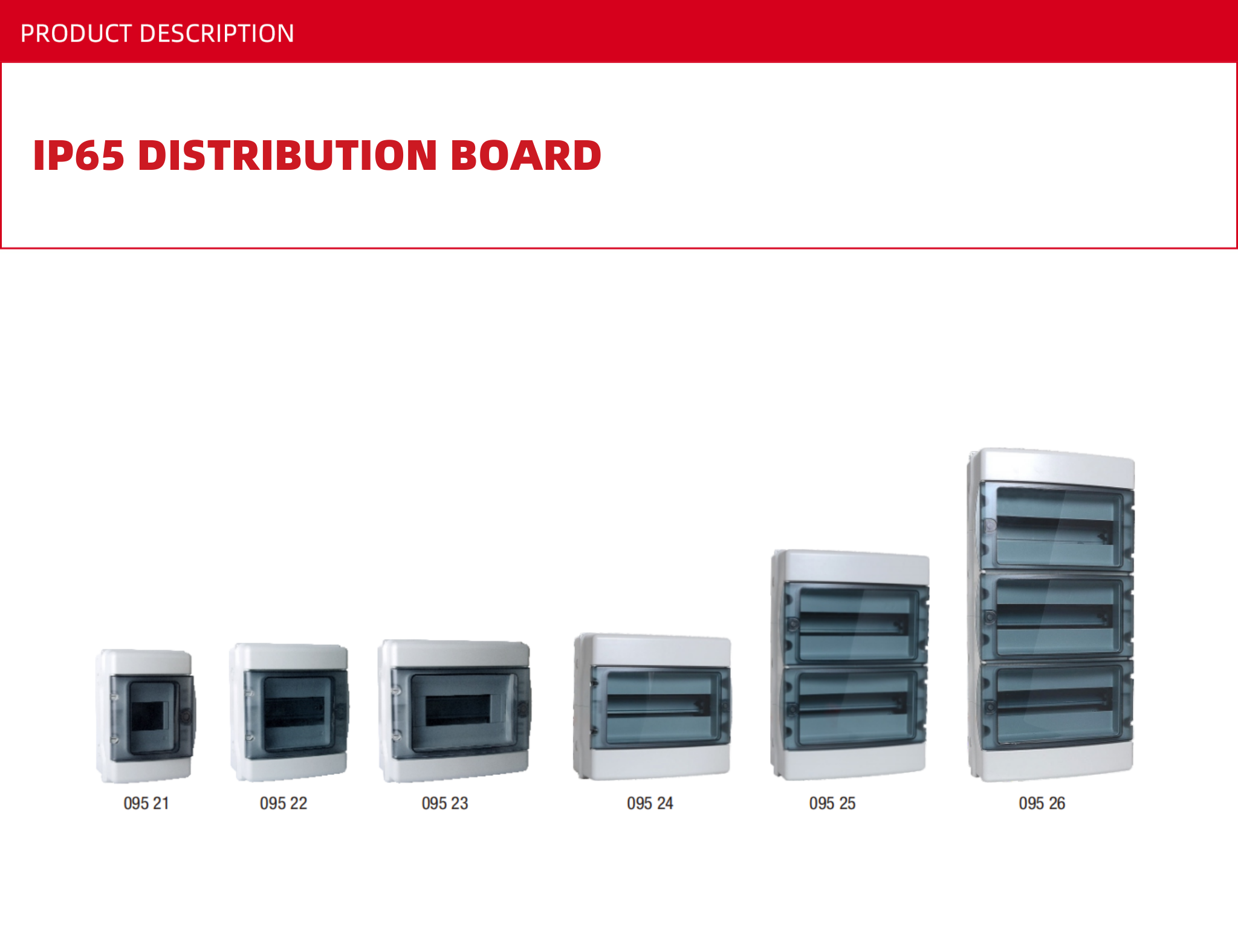

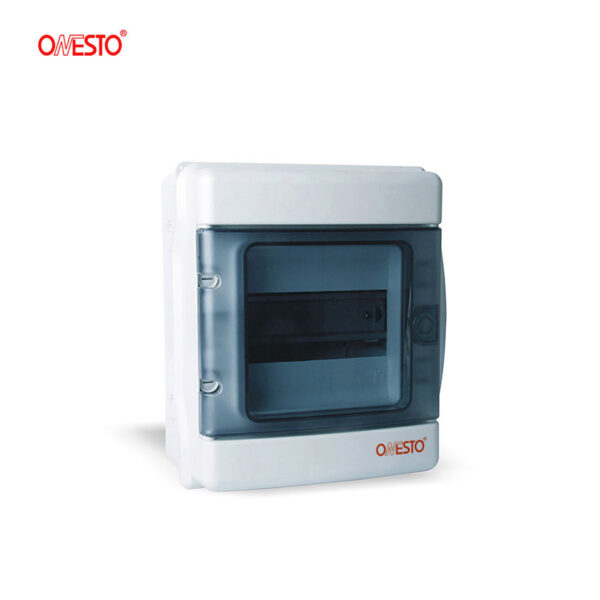

4 way 1 din rail | 09521 | 146×213×110 | WDB4 |
6 way 1 din rail | 09522 | 179×213×112 | WDB6 |
9way 1 din rail | 09523 | 233×213×112 | WDB9 |
13way 1 din rail | 09524 | 305×285×145 | WDB13 |
26way 2 din rail | 09525 | 305×444×145 | WDB26 |
39way 3 din rail | 09526 | 305×603×145 | WDB39 |
52way 4 din rail | 09527 | 305×762×145 | WDB52 |
Type | WDB4 | WDB6 | WDB9 | WDB13 | WDB26 | WDB39 | WDB52 |
Top | 3XM20 | 4XM20 1XM20/M25 | 4XM16, 4XM20, 1XM16/M20/M32 | 4XM16, 4XM20, 2XM16/M20/M25, 1XM20/M25/M32 | 4XM16, 4XM20, 2XM16/M20/M25, 1XM20/M25/M32 | 4XM16, 4XM20, 2XM16/M20/M25, 1XM20/M25/M32 | 4XM16, 4XM20, 2XM16/M20/M25, 1XM20/M25/M32 |
Bottom | 3XM20 | 4XM20 1XM20/M25 | 4XM16, 4XM20, 1XM16/M20/M32 | 4XM16, 4XM20, 2XM16/M20/M25, 1XM20/M25/M32 | 4XM16, 4XM20, 2XM16/M20/M25, 1XM20/M25/M32 | 4XM16, 4XM20, 2XM16/M20/M25, 1XM20/M25/M32 | 4XM16, 4XM20, 2XM16/M20/M25, 1XM20/M25/M32 |
Each side | 2XM16/M20 | 2XM16/M20 | 2XM16/M20 | 2XM16/M20 | 3XM16/M20 | 4XM16/M20 | 5XM16/M20 |
