for solar panel system
- No.of pole: 1P , 2P ,2+1 , 3P , 3+1 ,4P
- Rated voltage: 275V ,385V ,440V AC
- Type of network systems: TN-S, TN-C-S , IT , TT
- Maxium discharge surge current: 20kA ,40kA
- Plug-in replacement module with indicator
- Available with signaling auxiliary
- DIN rail 35mm installation
- Comply with IEC61643-11, EN50539-11

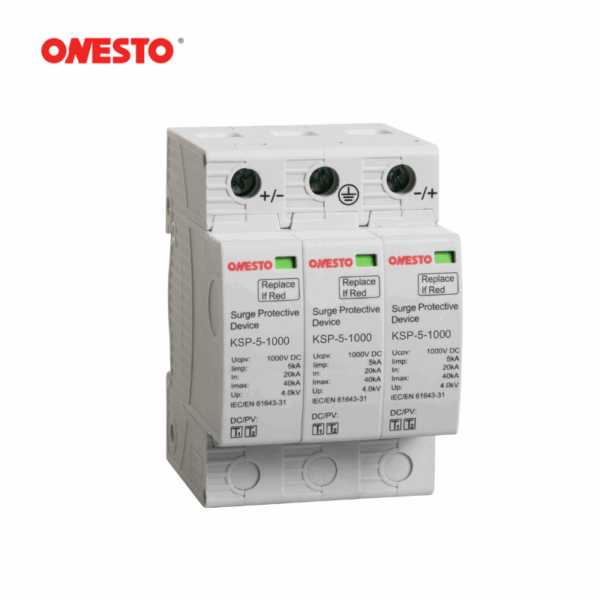

| Type | KSP-5-500 | KSP-5-600 | KSP-5-1000 | KSP-5-1200 | KSP-5-1500 |
| No.of pole | 2 pole | ||||
| Type of network systems | PV | ||||
| SPD classification according to EN61643-11 | Type 1+Type 2 | ||||
| SPD classification according to lEC61643-11 | Class l+Class ll | ||||
| Max. continuous operating dc voltage UcpV | 500V DC | 600V DC | 1000V DC | 1200V DC | 1500V DC |
| Lighting impulse current(10/350us) Iimp | 5KA | ||||
| Nominal discharge current(8/20us) In | 20KA | ||||
| Max. discharge current(8/20us) Imax | 40KA | ||||
| Voitage protection level Up | ≤2.6kV | ≤2.6kV | ≤4.0kV | ≤4.0kV | ≤5.2kV |
| Charge (of impulse current) Q | 2.5As | ||||
| Specific energy W/R | 6.25kJ/Ω | ||||
| Response time tA | ≤25ns | ||||
| Operating temperature range Tu | -40°C-80°C | ||||
| Operating state/fault indication | green / red | ||||
| Cross-section area (Min) | 4mm² | ||||
| Cross-section area (Max) | 25mm² | ||||
| For mounting on | 35mm Din rall | ||||
| Enclosure material | thermoplastic UL 94-VO | ||||
DC Surge protector
