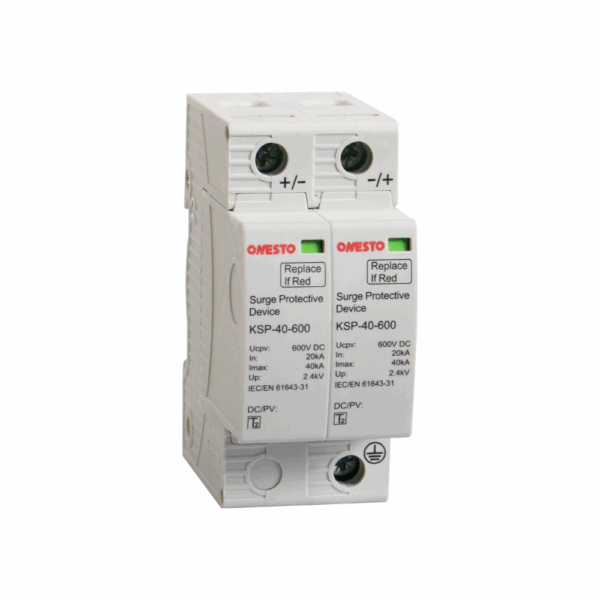

DC Surge Protective Device 600V 2P

for solar panel system

- No.of pole: 2P, 3P
- Rated voltage: 600V, 1000V DC
- Type of network system: PV
- Maxium discharge surge current: 40kA
- Plug-in replacement module with indicator
- Available with signaling auxiliary
- Din rail 35mm installation
- Comply with IEC61643-31

Descriptions

The DC surge protective device is designed for photovoltaic (PV) systems and adopts a 2-pole configuration for a rated voltage range of 500V DC to 600V DC. It complies with EN61643-11 and IEC61643-11 standards, is classified as Type 2/Class II, and has excellent lightning protection performance. The maximum discharge current can reach 40kA, the nominal discharge current is 20kA, the voltage protection level is as low as 2.2kV to 2.4kV, and the response time is only 25ns. The protector can operate stably in a wide temperature range of -40°C to 80°C, and displays the operating status/fault through a green/red indicator light. Its housing is made of thermoplastic material, meets the UL94-V0 fireproof rating, is easy to install on a 35mm rail, provides IP20 level protection, and is suitable for occasions with a wire cross-sectional area of 4mm² to 25mm².

Type	KSP-40-500	KSP-40-600	KSP-40-1000	KSP-40-1200
No.of pole	2 pole / 3 pole	2 pole / 3 pole	3 pole	3 pole
Type of network system	PV
SPD classification according to EN61643-11	Type 2
SPD classification according to EN61643-11	Class II
Max. continuous operating dc voltage (Ucpv)	500V DC	600V DC	1000V DC	1200V DC
Nominal discharge ge current(8/20μs) In	20kA	20kA	20kA	20kA
Max. discharge current(8/20μs) Imax	40kA	40kA	40kA	40kA
Voltage protection level Up	2.2kV/2.6kV	2.4kV/2.6kV	4.0kV	4.0kV
Response time TA	≤25ns
Operating temperature range Tu	-40℃ to 80℃
Operating state/fault indication	green/red
Protection rating	IP20
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	25mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
