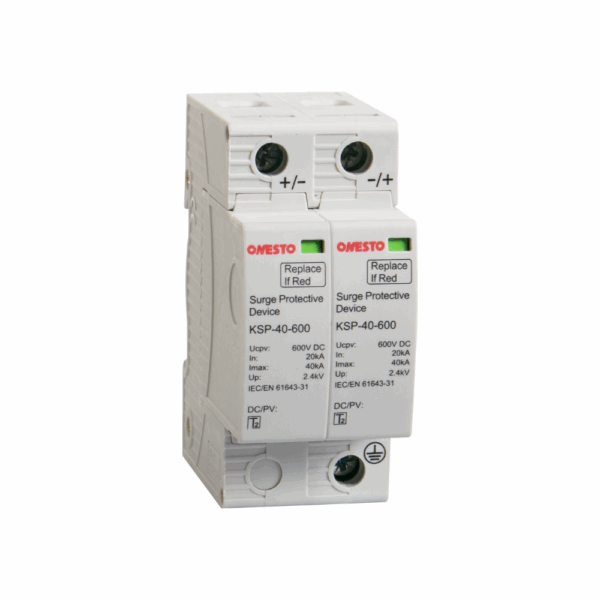

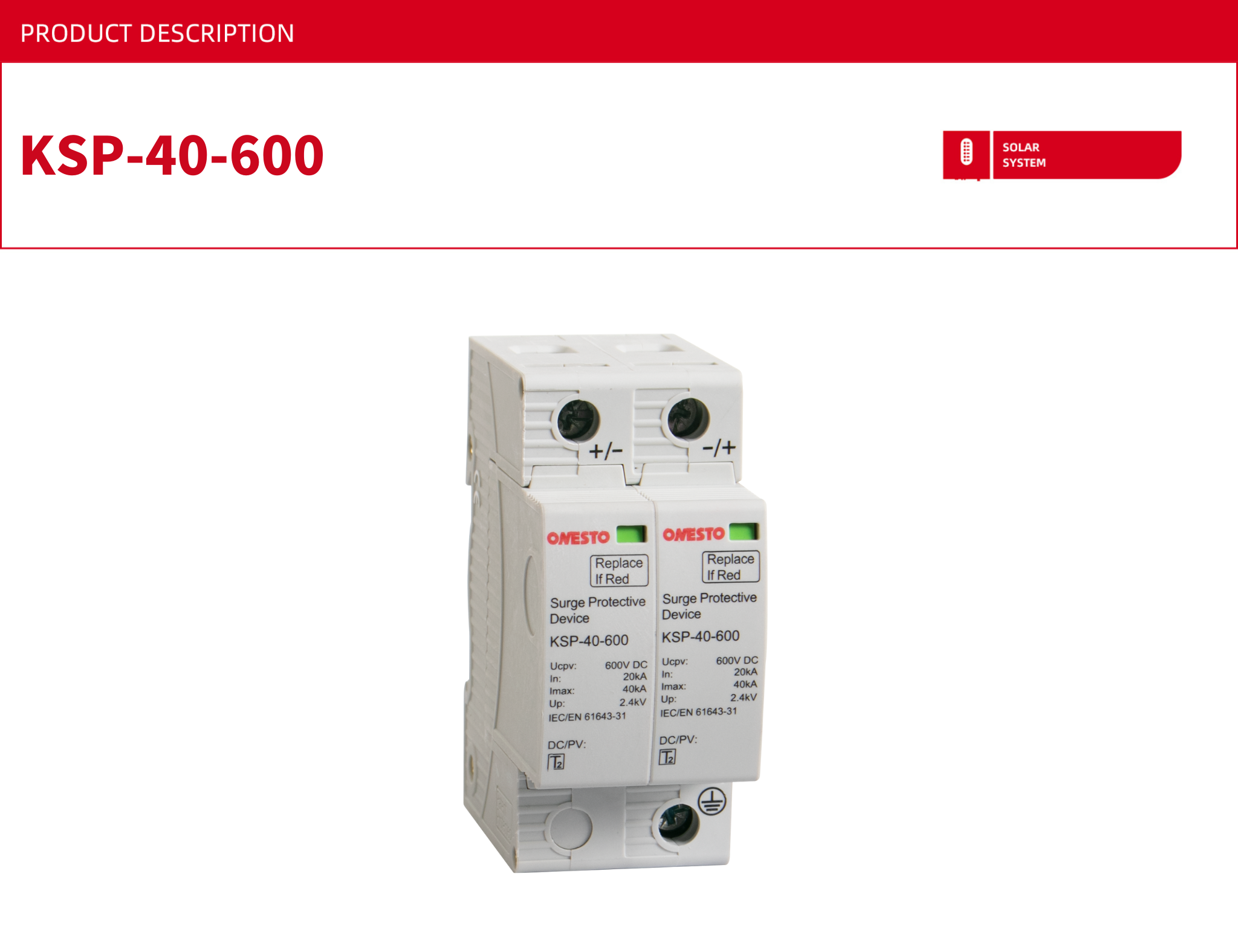

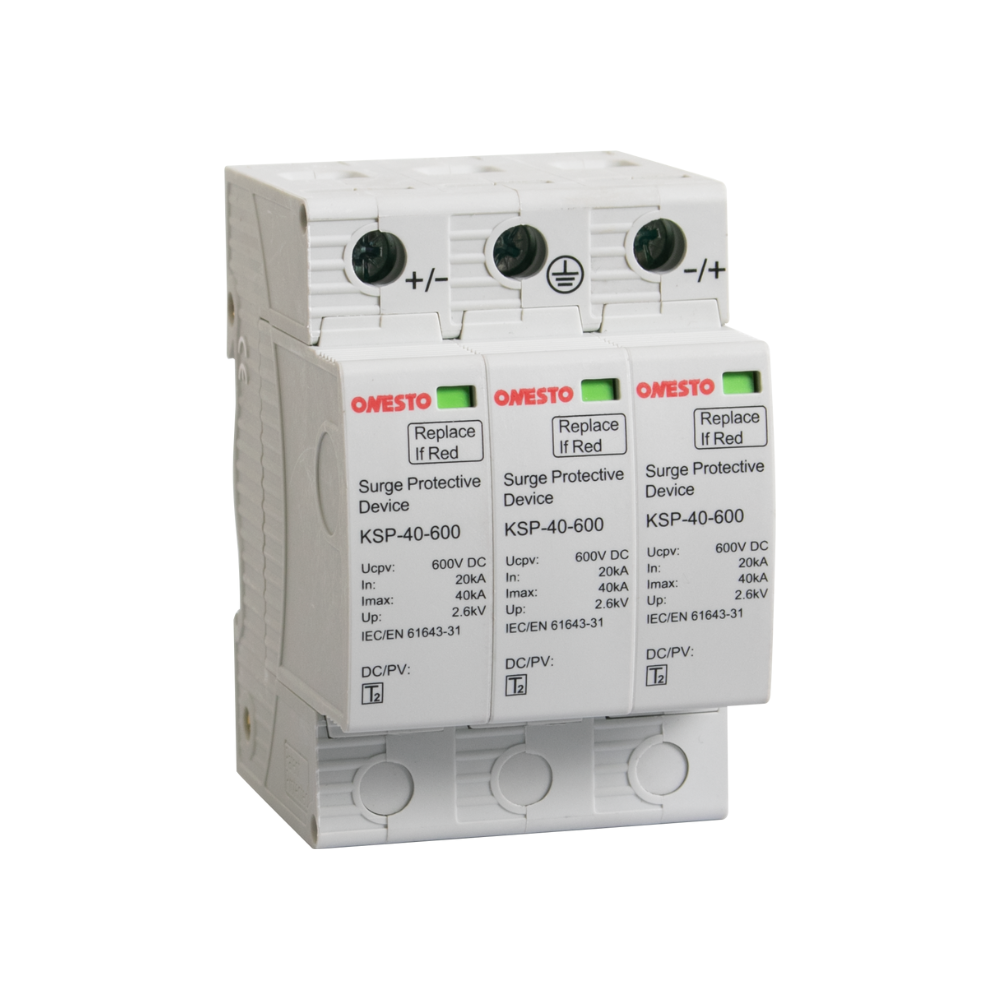

for solar panel system
- No.of pole: 2P, 3P
- Rated voltage: 600V,1000V
- Type of network systems: PV
- Maxium discharge surge current: 40kA
- Plug-in replacement module with indicator
- Available with signaling auxiliary
- DIN rail 35mm installation
- Comply with IEC61643-31
| Type | KSP-40-500 | KSP-40-600 | KSP-40-1000 | KSP-40-1200 |
| No.of pole | 2 pole/3 pole | 2 pole/3 pole | 3 pole | 3 pole |
| Type of network systems | PV | |||
| SPD classification according to EN61643-11 | Type 2 | |||
| SPD classification according to lEC61643-11 | Classll | |||
| Max. continuous operating dc voltage (UcpV) | 500V DC | 600V DC | 1000V DC | 1200V DC |
| Nominal discharge ge current (8/20 μs) (In) | 20KA | |||
| Max. discharge curent (8/20 μs) (Imax) | 40KA | |||
| Voltage protection level (Up) | 2.2kV/2.6kV | 2.4kV/2.6KV | 4.0KV | 4.0KV |
| Response time (TA) | s25ns | |||
| Operating temperature range (Tu) | -40’C to 80C | |||
| Operating state/fault indication | green red | |||
| Protection rating | IP20 | |||
| Cross-section area (Min.) | 4mm² | |||
| Cross-section area (Max.) | 25mm² | |||
| For mounting on | 35mm Din rail | |||
| Enclosure material | Thermal plastic UL94-V0 | |||
DC Surge Protective Device
