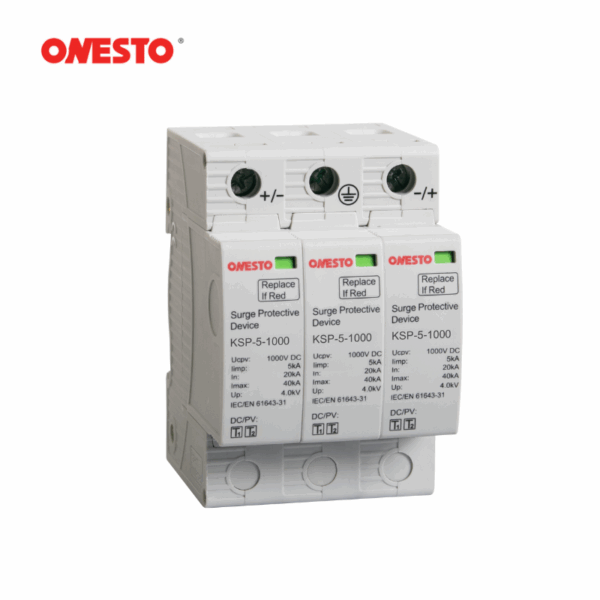

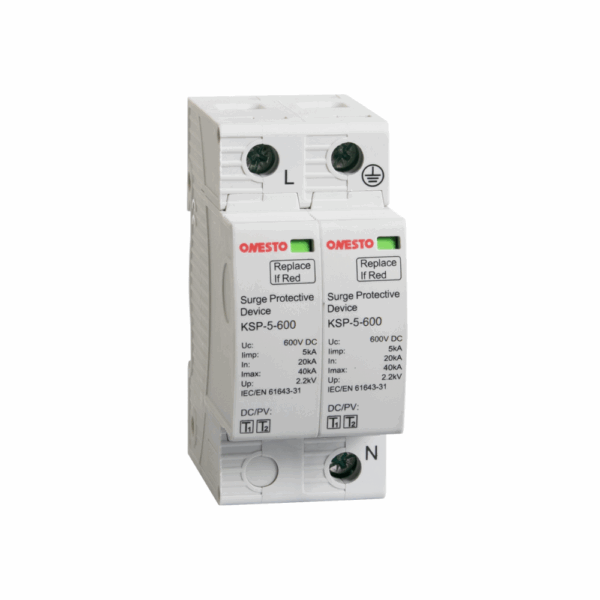

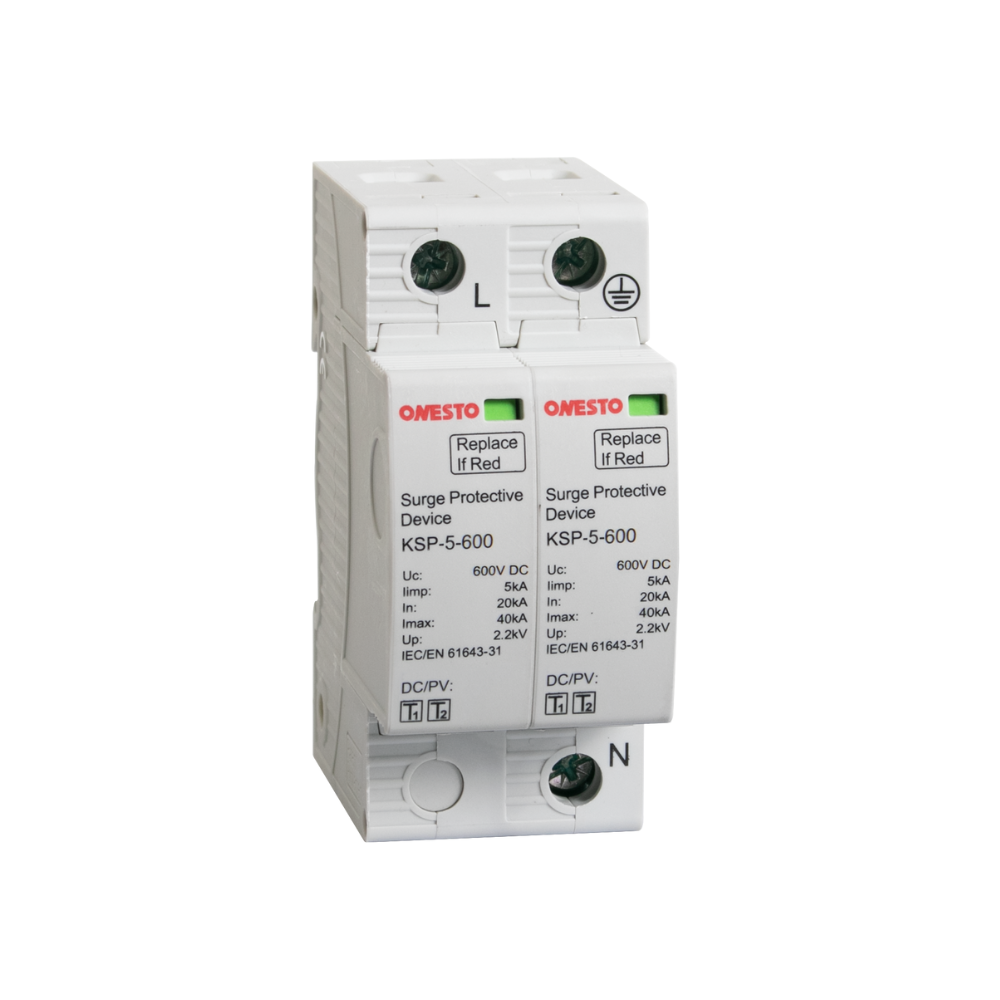

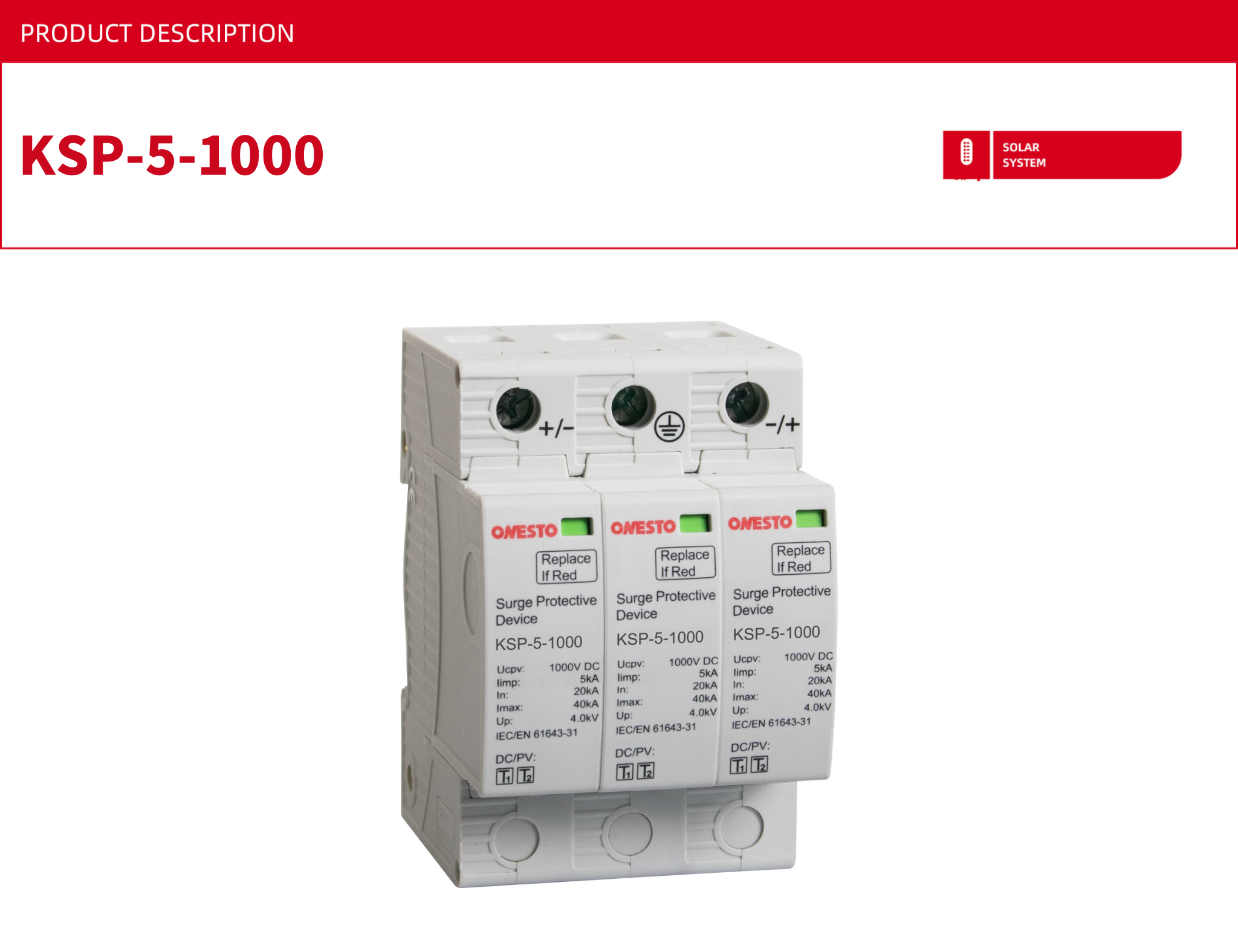

for solar panel system
- No.of pole: 2P, 3P
- Rated voltage: 500V-1500V DC
- Type of network system: PV
- Lighting impulse current: 5kA
- Plug-in replacement module with indicator
- Available with signaling auxiliary
- Din rail 35mm installation
- Comply with IEC61643-31
| Type | KSP-5-500 | KSP-5-600 | KSP-5-1000 | KSP-5-1200 | KSP-5-1500 |
| No.of pole | 2 pole, 3 pole | 3 pole | |||
| Type of network | PV | ||||
| SPD classification according to EN61643-31 | Type 1+Type 2 | ||||
| SPD classification according to EN61643-31 | Class I+Class II | ||||
| Max. continuous operating d.c. voltage (Ucpv) | 500V DC | 600V DC | 1000V DC | 1200V DC | 1500V DC |
| Lighting impulse current (10/350us) (limp) | 5kA | ||||
| Nominal discharge current (8/20us) (In) | 20kA | ||||
| Max. discharge current (8/20us) (Imax) | 40kA | ||||
| Voltage protection level (Up) | ≤2.6kV | ≤2.6kV | ≤4.0kV | ≤4.0kV | ≤5.2kV |
| Charge (of impulse current) Q | 2.5As | ||||
| Specific energy (W/R) | 6.25kJ/Ω | ||||
| Response time tA | ≤25ns | ||||
| Operating temperature range TU | -40℃to-80℃ | ||||
| Operating state/fault indication | green/red | ||||
| Cross-section area (Min) | 4mm² | ||||
| Cross-section area (Max) | 25mm² | ||||
| For mounting on | 35mm Din Rail | ||||
| Enclosure material | thermoplastic UL 94-V0 | ||||
#DC Surge Protective Device
