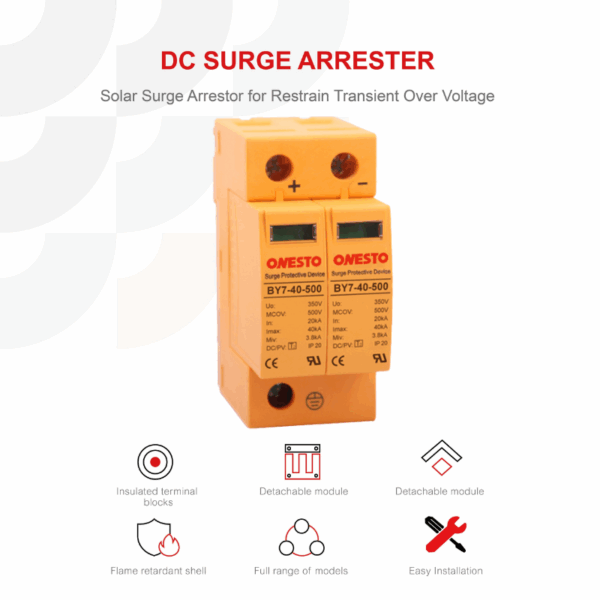

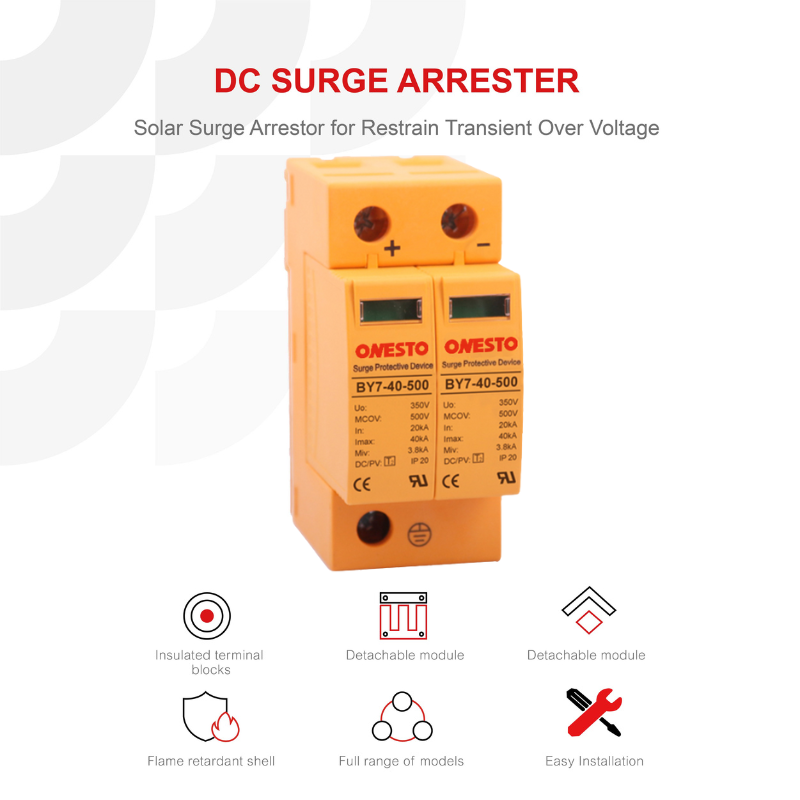

for solar panel system
- No.of pole: 2P, 3P
- Rated voltage: 500V,600V,800V,1000V,1200V,1500V DC
- Type of network systems: PV
- Maxium discharge surge current: 20kA ,40kA ,60kA ,80kA

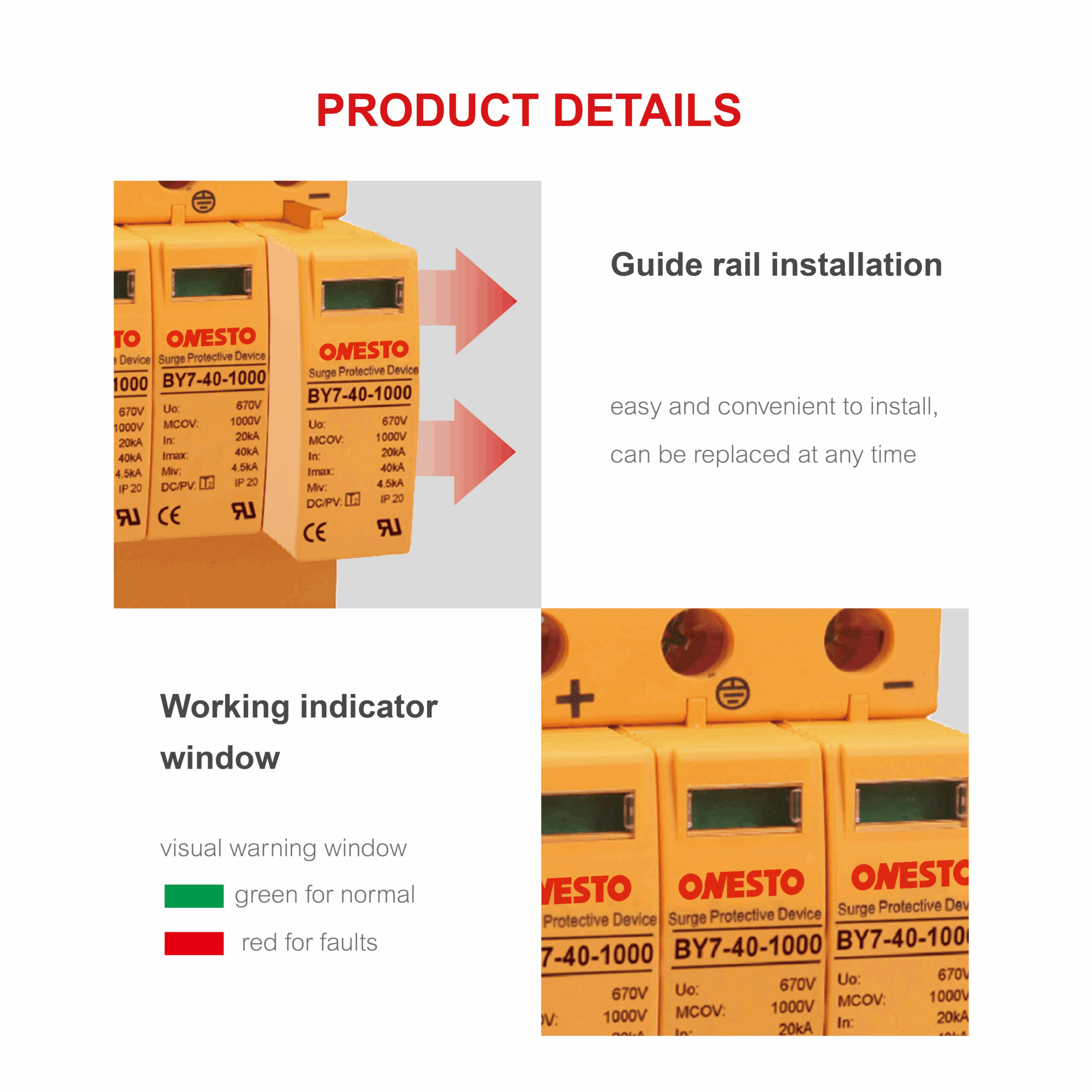

- Plug-in replacement module with indicator
- Available with signaling auxiliary
- DIN rail 35mm installation
- Comply with IEC61643-31, EN50539-11

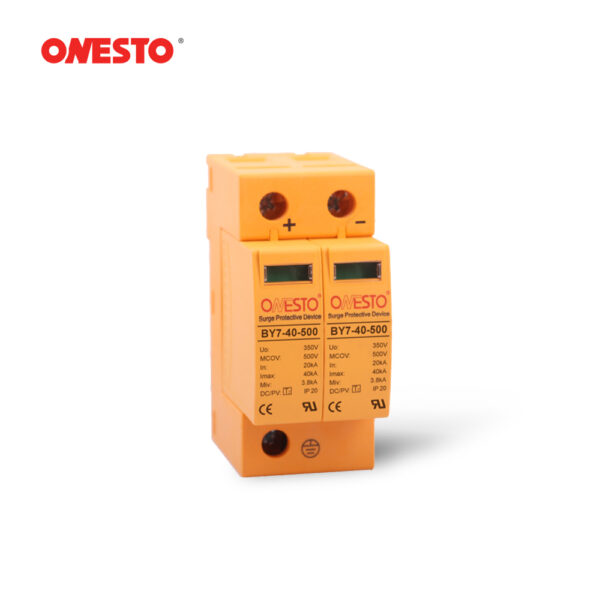

| Type | BY7-40/2-500 | BY7-40/2-600 | BY7-40/2-800 | BY7-40/2-1000 | BY7-40/2-1200 | BY7-40/2-1500 |
| Type of network system | PV | |||||
| Maxium continuous voltage (Uc) | 500VDC | 600VDC | 800VDC | 1000VDC | 1200VDC | 1500VDC |
| Maxium discharge surge current (Imax) | 40kA | |||||
| Norminal discharge current(8/20us) In | 20kA | |||||
| Voltage protection level (Up) | 3.51kV | 3.74kV | 4.16kV | 4.28kV | 4.28kV | 4.8kV |
| Protection rating | IP20 | |||||
| Connection | Screw terminal : 4 to 25mm , by busbar | |||||
| Temperature range | -40℃+80℃ | |||||
| Disconnection indicator | RED INDICATOR | |||||
| Remote signalling of disconnection | option | |||||
| Mounting | symmetrical rail(EN50022/DIN46277-3) 35mm | |||||
| Housing material | PA6 UL94-V0 | |||||
dc spd breaker
