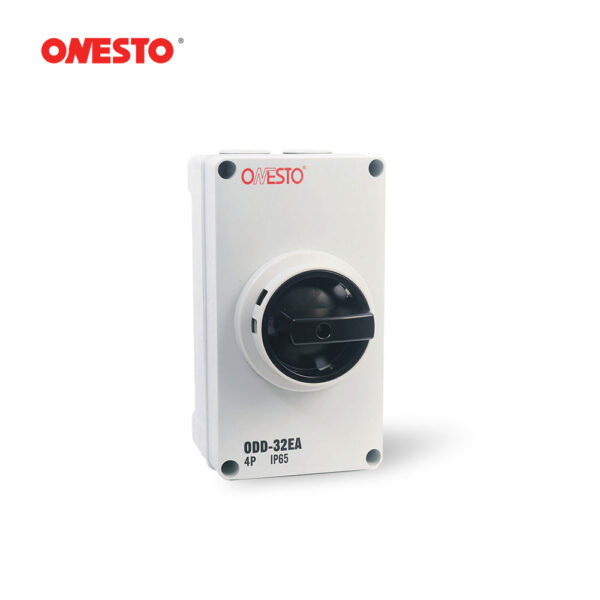

DC Isolator Switch 4A to 32A with E/EA Type IP66 Waterproof Box

ODD Series for PV System

- No.of pole: 2P , 2+2P , 4P
- Rated voltage: 300V, 500V , 600V , 800V , 1000V , 1200VDC
- Rated current: 16A, 25A, 32A
- Rated insulation voltage: 1000V
- Rated impulse withstand voltage: 8kV
- Utilization category: DC-21B / DC-PV1 / DC-PV2
- Comply with IEC60947-3

Descriptions

ONESTO DC isolator switch is a high-performance electrical protection device, providing 2P/2+2P/4P three pole configurations, suitable for 300V-1200V DC system, with optional rated current of 4A-50A. The product is IEC60947-3 certified, with 1000V insulation level and 8kV impact resistance, in line with DC-21B/DC-PV1/DC-PV2 application standards, and is designed for photovoltaic power generation, energy storage systems and industrial DC power distribution, ensuring safe circuit isolation and reliable control.

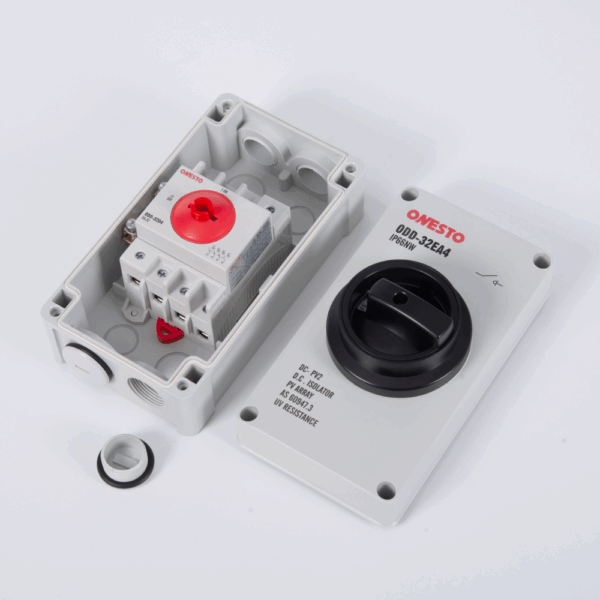

With E/EA Type IP66 Waterproof Box for DC-PV2
No.of pole	300V	600V	800V	1000V	1200V	E Type Box	EA Type Box
2	16A	16A	9A	5A	4A	ODD-16E2	ODD-16EA2
2+2	25A	25A	/	/	/	ODD-16E22	ODD-16EA22
4	16A	16A	16A	16A	13.5A	ODD-16E4	ODD-16EA4
2	25A	25A	11A	6A	5A	ODD-25E2	ODD-25EA2
2+2	32A	25A	/	/	/	ODD-25E22	ODD-25EA22
4	25A	25A	25A	25A	21A	ODD-25E4	ODD-25EA4
2	32A	32A	13A	9A	6A	ODD-32E2	ODD-32EA2
2+2	45A	40A	/	/	/	ODD-32E22	ODD-32EA22
4	32A	32A	32A	32A	27A	ODD-32E4	ODD-32EA4

With E/EA Type IP66 Waterproof Box for DC-PV1 / DC-21B
No.of pole	300V	600V	800V	1000V	1200V	E Type Box	EA Type Box
2	16A	16A	16A	9A	4A	ODD-16E2	ODD-16EA2
2+2	29A	29A	16A	9A	4A	ODD-16E22	ODD-16EA22
4	16A	16A	16A	16A	13.5A	ODD-16E4	ODD-16EA4
2	25A	25A	20A	12A	5A	ODD-25E2	ODD-25EA2
2+2	45A	45A	20A	12A	5A	ODD-25E22	ODD-25EA22
4	25A	25A	25A	25A	21A	ODD-25E4	ODD-25EA4
2	32A	32A	23A	13A	6A	ODD-32E2	ODD-32EA2
2+2	50A	50A	23A	13A	6A	ODD-32E22	ODD-32EA22
4	32A	32A	32A	32A	27A	ODD-32E4	ODD-32EA4
