With 10x38mm Fuse Link
No. of pole: 1P, 2P, 3P, 4P
Rated voltage: 1000V DC (25A) / 690V AC (32A)
Rated current: 25A / 32A
Utilization category: DC-20B or AC-20B
Rated insulation voltage: 1100V
Rated impulse withstand voltage: 6kV
Comply with IEC60947

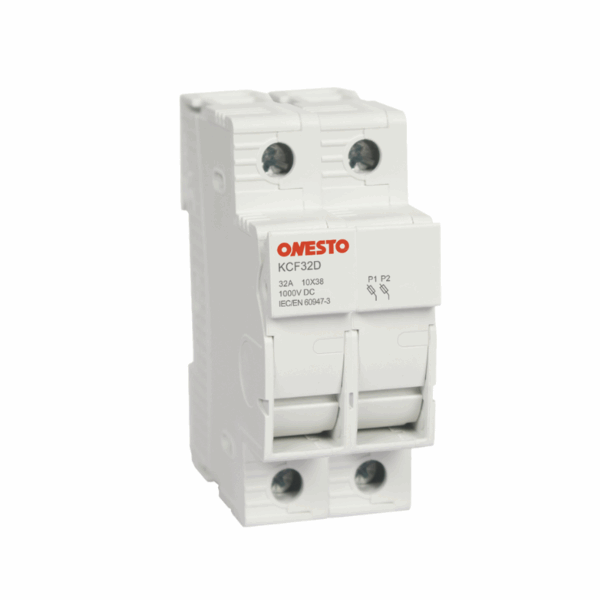

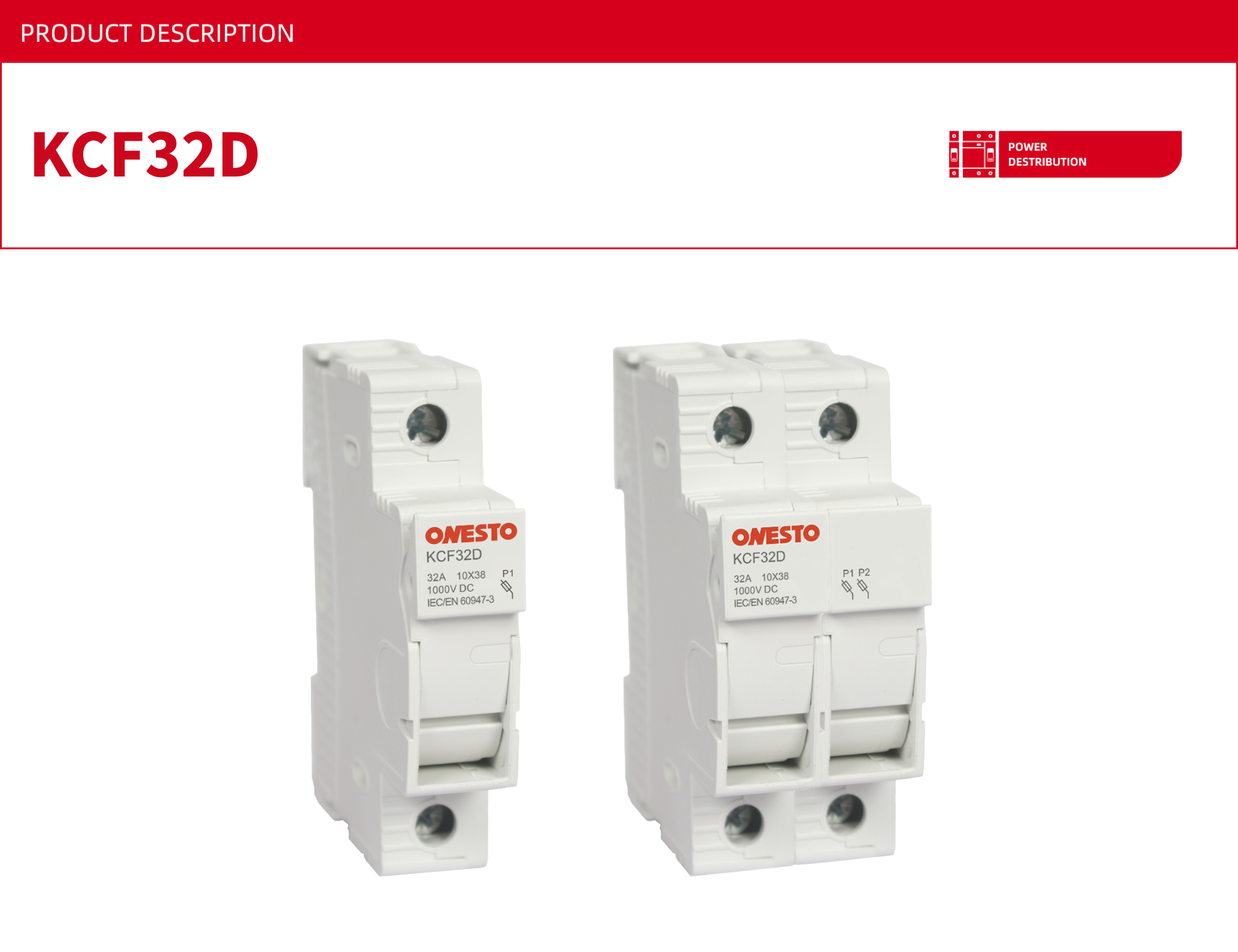

The dc ac fuse holder is available in models such as KCF2-25/KCF32, supports 1-4 pole configurations, and is suitable for 1000V DC/690V AC high voltage environments. Core parameters include 25A/32A rated current, 1100V insulation voltage, and 6kV impulse withstand voltage, in compliance with the IEC60947 international standard. The product adopts a standard fuse link size of 10×38mm, meets industrial-grade circuit protection requirements, and combines safety with the convenience of bulk purchase.
| Description | Cat.nos. | Fuse Link Size | Pack | Carton |
| 1000V DC 25A 1Pole | 856 01 | 10x38mm | 12 | 240 |
| 1000V DC 25A 2Pole | 856 02 | 10x38mm | 6 | 120 |
| 1000V DC 25A 3Pole | 856 03 | 10x38mm | 4 | 80 |
| 1000V DC 25A 4Pole | 856 04 | 10x38mm | 3 | 60 |
| 690V AC 32A 1Pole | 856 06 | 10x38mm | 12 | 120 |
| 690V AC 32A 2Pole | 856 07 | 10x38mm | 6 | 60 |
| 690V AC 32A 3Pole | 856 08 | 10x38mm | 4 | 40 |
| 690V AC 32A 4Pole | 856 09 | 10x38mm | 3 | 30 |
