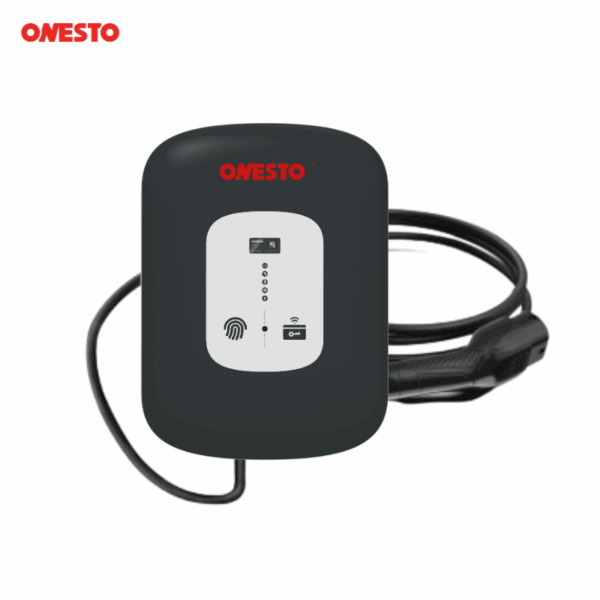

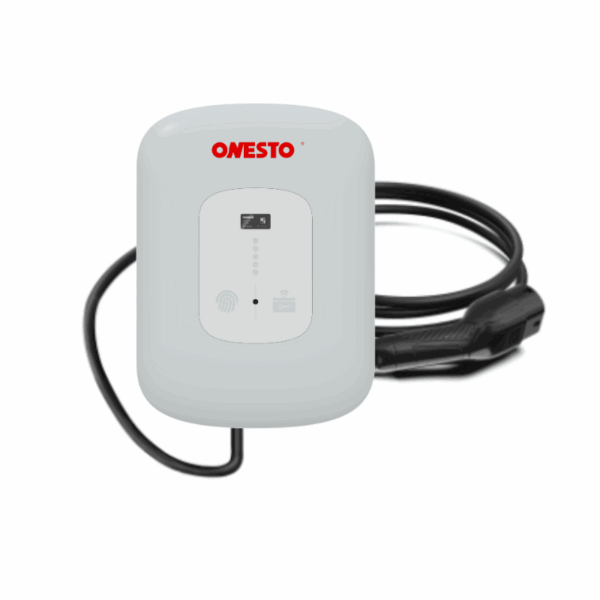

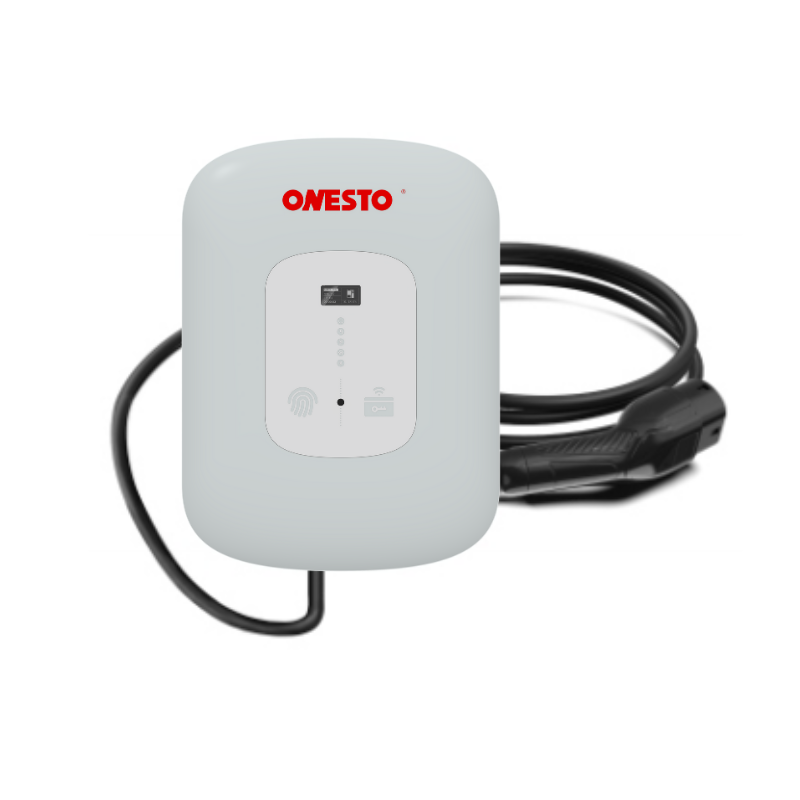

– Compact in size

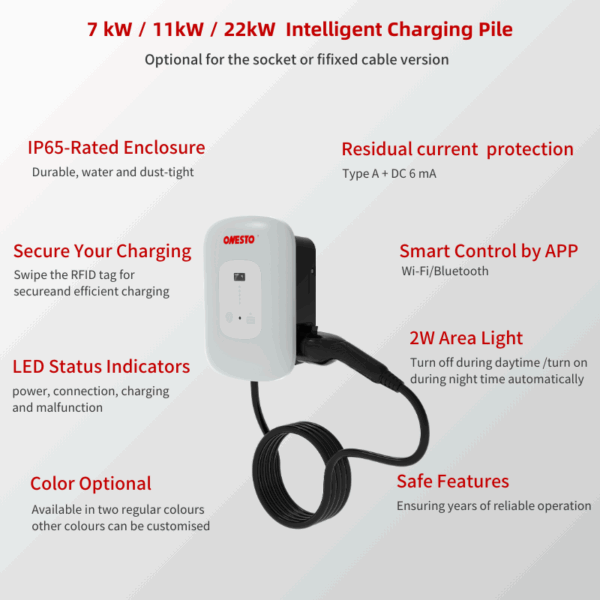

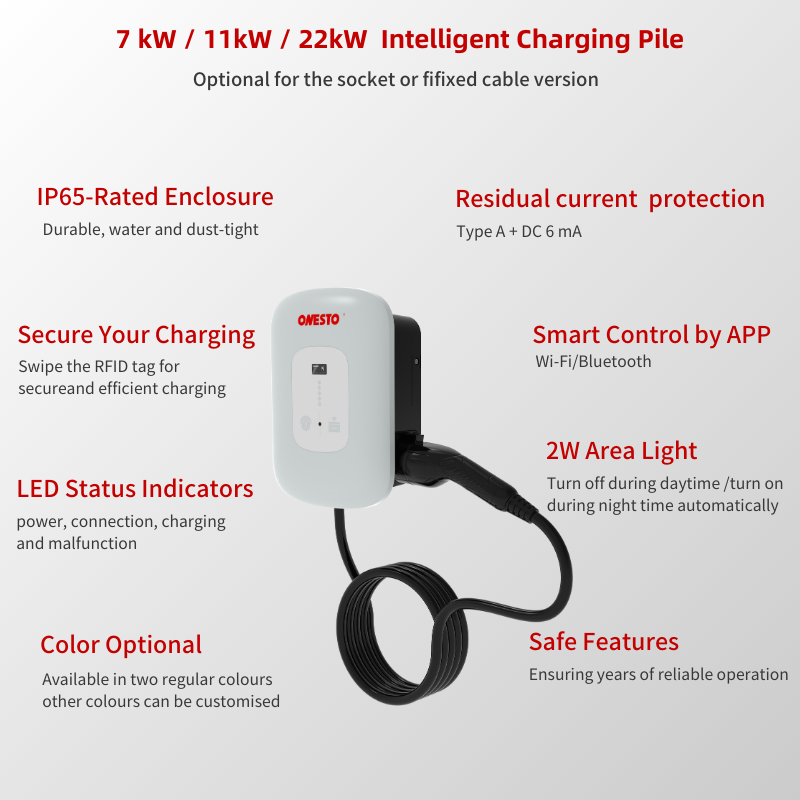

– Fully dynamic charging power 7.4kW / 11kW / 22kW, 1 and 3 phase charging
– Preset charging power & delay charging time
– 6A, 10A, 13A, 16A, 20A, 25A , 32A output current can be set according to grid type – Integrated RFID reader, supports whitelisting of RFID tags
– Residual current protection: Type A + DC 6 mA
– Over current, over voltage, under voltage, surge, short circuit, ground fault, over temperature, leakage, and sticking of relay detection
– Equipped for 2W area light
– 1.3″ OLED LCD display
– LED status indicators: power, connection, charging and malfunction
– Optional for the socket or fixed cable version

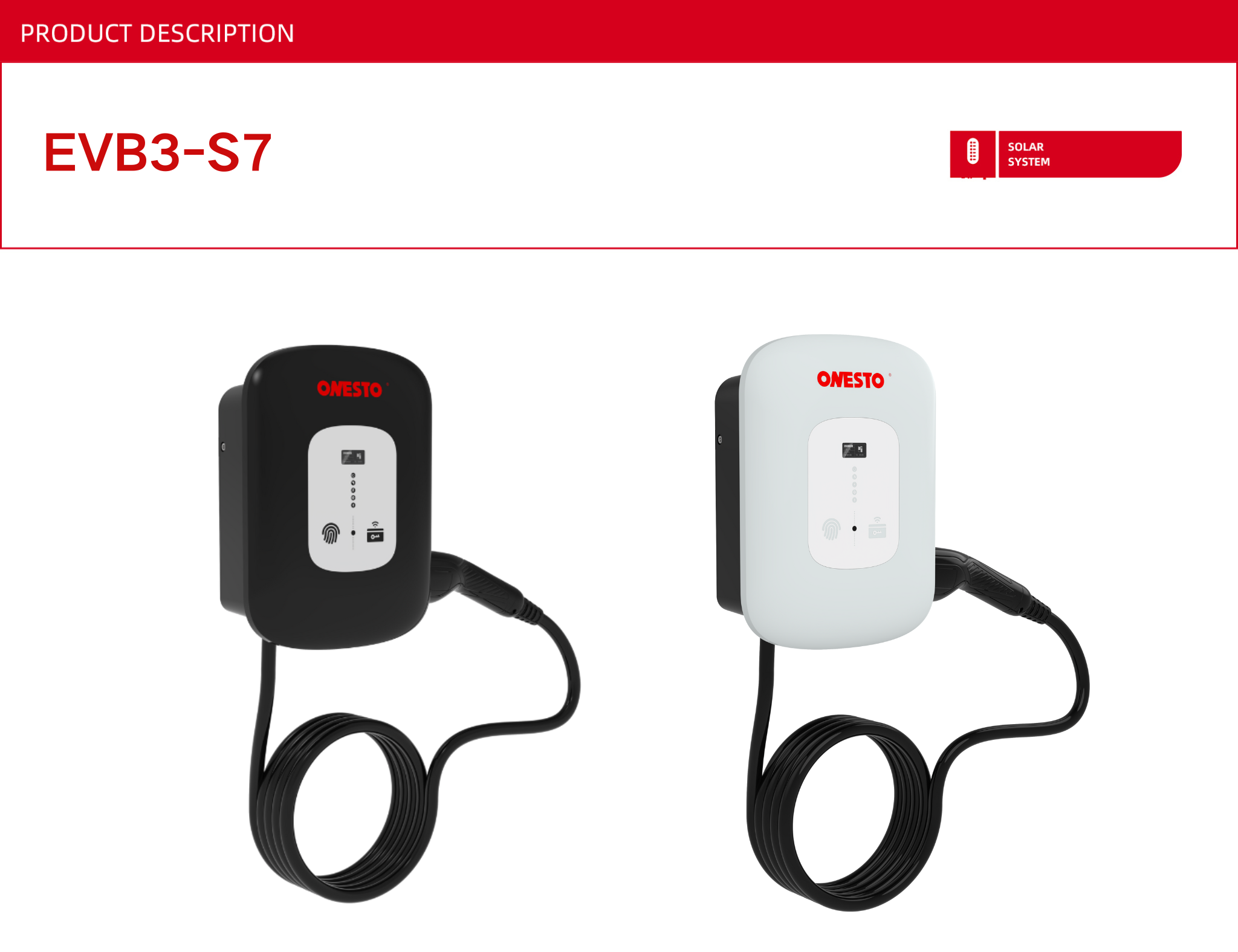

| Model | EVB3-S7 & EVB3-T22 | ||
| Rated Voltage | 220-240V (1 phase) 380-415V (3 phase ) | ||
| Output Current | 6A, 10A, 13A, 16A, 20A, 25A, 32A | ||
| Output Power | Max. 7.4kW (1 phase), Max. 22kW (3 phase) | ||
| Charging Mode | Mode 3 | ||
| Charging Interface | IEC 62196-2 Type 2 Socket , IEC 62196-2 Type 2 Plug | ||
| Standby Power | ≤4W | ||
| IP Rating | IP65 | ||
| IK Rating | IK08 | ||
| RCD/CCID | Type A+DC 6mA | ||
| Operating Temp | -30 °C to +50 °C | ||
| Storage Temp. | -40 °C to +80 °C | ||
| User Authorization | ISO/IEC 14443 RFID card reader | ||
| Color Option | Grey+White, Black+White, Black+Red | ||
| Cable Option | 5m & 7m | ||
| Connect Version Option | Socket ,Socket with safety doors ,Fixed Cable | ||
| Connectivity Option | Basic | Smart | Premium |
| Networking | / | Wi-Fi/Bluetooth | Wi-Fi / Bluetooth Cellular (optional) Ethernet (optional) |
| Control Protocol | / | OCPP 1.6 JSON | OCPP 1.6 JSON |
