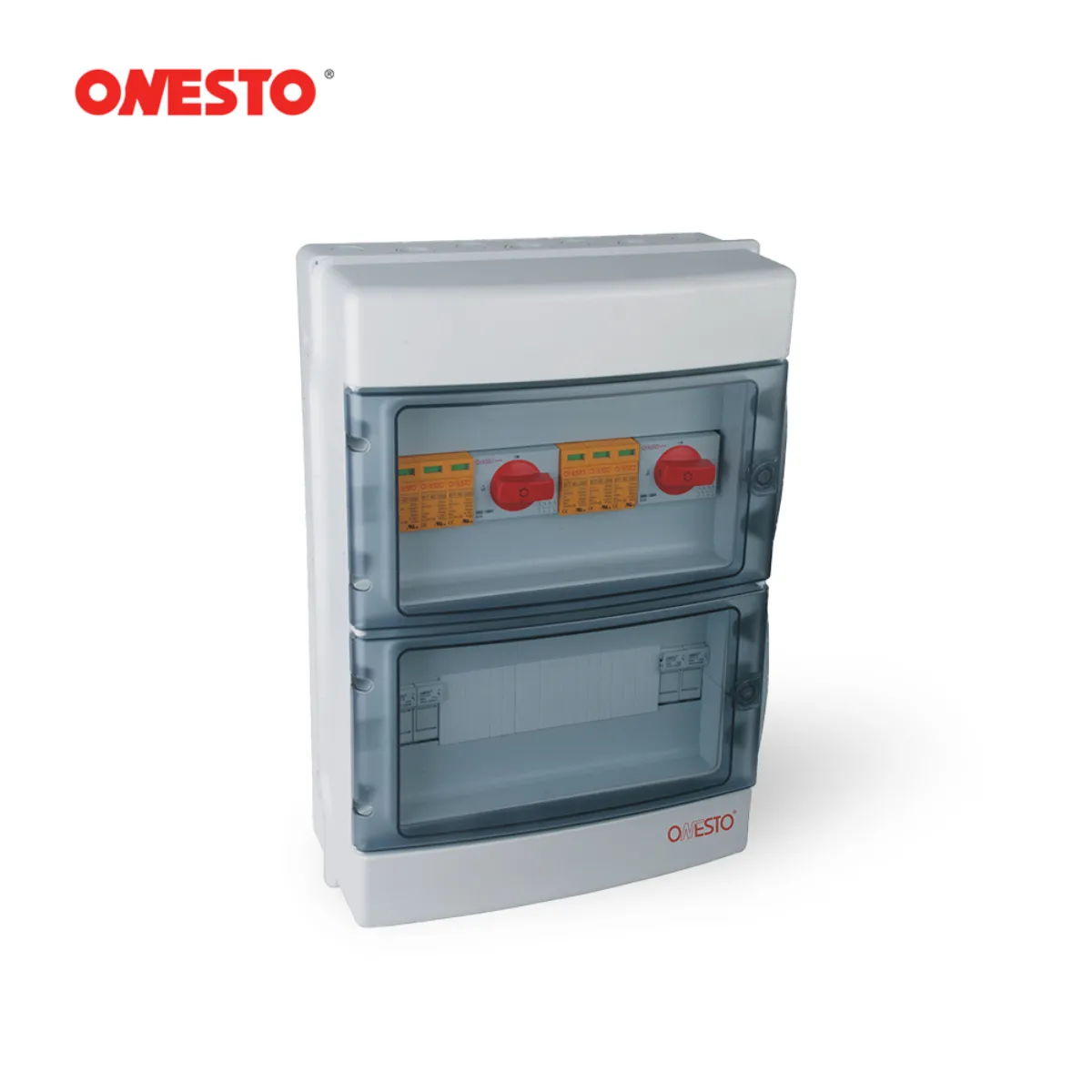

2 In 2 Out PV String Box
The WDB13DFS2-1000 solar combiner box, featuring a modular design with an IP65-rated enclosure, suitable for electrical isolation and protection in photovoltaic systems. It is equipped with a 25A/1000VDC Isolator switch and a 10A/1000VDC fuse disconnector, providing overcurrent protection, and features a 40kA surge protector (DC1000V) to defend against lightning strikes. Compliant with international standards such as IEC and TUV, the pre-wired design simplifies installation. With a compact size (305×285×145mm), it is suitable for string isolation, overcurrent, and overvoltage protection requirements in distributed photovoltaic power plants.
| Description | No.of input | No.of output | MPPT | Max. voltage | Max. current |
| One in one out 16A 1000V DC Pre-wired PV string box | 2 | 2 | 2 | 1000V DC | 25A |
| Switch disconnector | ODD-25D4 | Fuse disconnector | KCF2-25 / PVCF10 | |
| No.of pole | 4 | Rated voltage of fuse (Ue) | 1000V DC | |
| Rated insulation voltage (Ui) | 1000V DC | Rated current of fuse (Ie) | 10A | |
| Rated current (Ie) | 25A | Fuse size | 10×38mm | |
| Rated impulse withstand voltage (Uimp) | 8kV | Rated breaking capacity | 25kA | |
| Category | DC21B | Class of operation | gPV | |
| Standard compliance | IEC 60947-3 | Standard compliance | IEC 60947, IEC 60269 | |
| Certificate | TUV , SAA | Certificate | TUV |
| Surge arrester | BY7-40/3 -1000 | Enclosure | WDB26 | |
| Classification | Type 2 | No.of module | 26 | |
| Maximum operation voltage (Ucpv) | 1000VDC | Material | PC / ABS | |
| Maximum discharge current (80/20µs) (Imax) | 40kA | Protection degree(IEC60529) | IP65 | |
| Norminal discharge current (80/20µs) (In) | 20kA | Impact resistance (IEC62262) | IK08 | |
| Short-circuit current rating (Iscpv) | 500A | Color | RAL7035 | |
| Voltage protection level (Up) | 4.5kV | Dimension(mm) | 305×435×145 | |
| Standard compliance | UI1449, IEC50539 | Standard compliance | IEC 62208 | |
| Certificate | UL , TUV | Certificate | CE |
