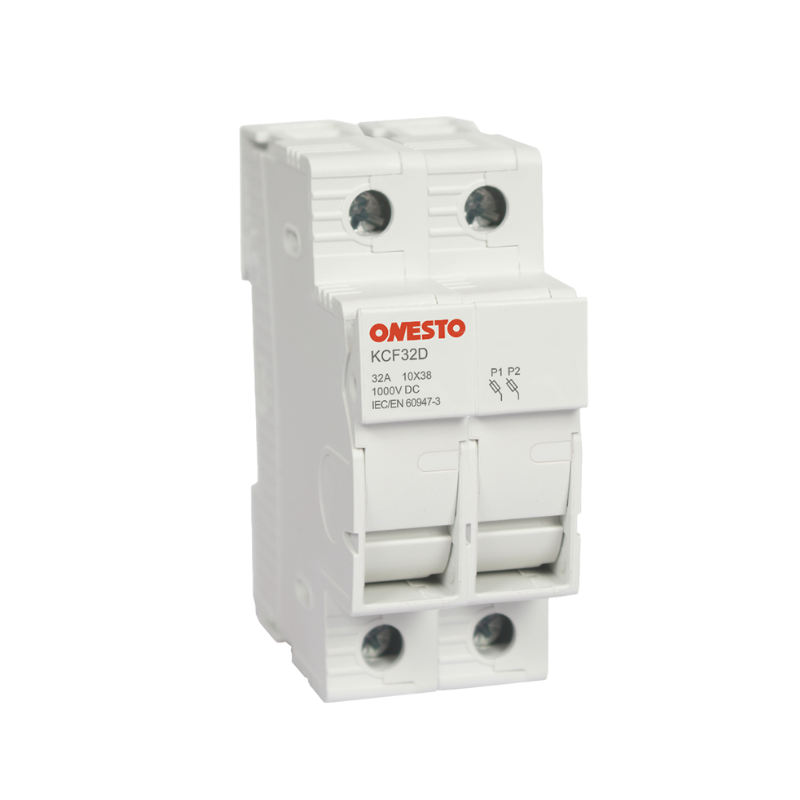

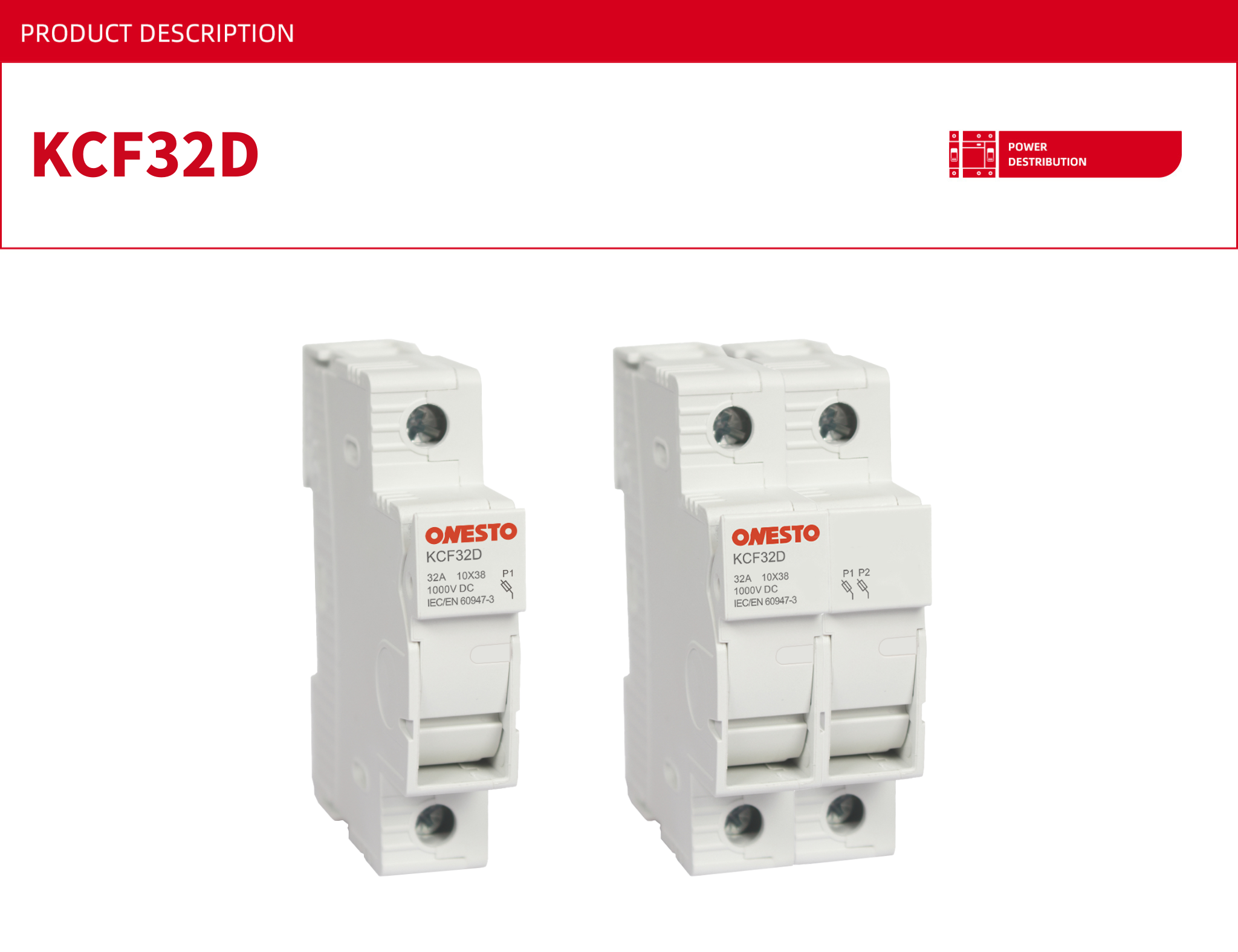

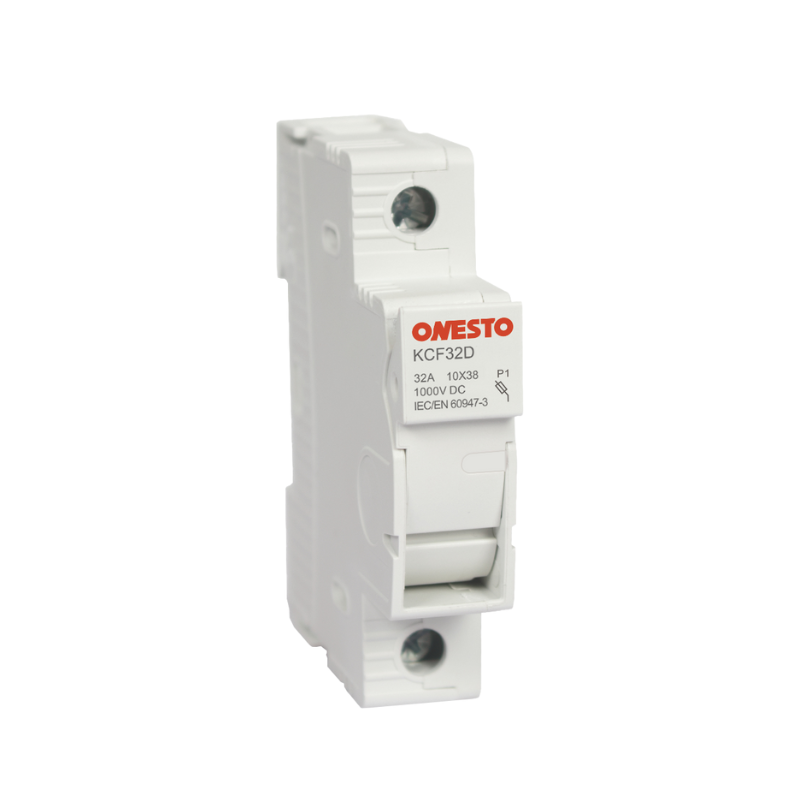

1000Vdc Fuse Holder 25A 32A
● No. of Pole: 1P, 2P, 3P, 4P
● Rated Voltage: 1000V DC(25A) / 690V AC(32A)
● Rated Current: 25A / 32A
● Utilization Category: DC-20B or AC-20B
● Rated Insulation Voltage: 1100V
● Rated Impulse withstand Voltage: 6kA
● Comply with IEC60947
| Description | Cat.Nos | Fuse Link Size | Pack | Carton |
| 1000V DC 25A 1 Pole | 856 01 | 10x38mm | 12 | 240 |
| 1000V DC 25A 2 Pole | 856 02 | 10x38mm | 6 | 120 |
| 1000V DC 25A 3 Pole | 856 03 | 10x38mm | 4 | 80 |
| 1000V DC 25A 4 Pole | 856 04 | 10x38mm | 3 | 60 |
| 690V AC 32A 1 Pole | 856 06 | 10x38mm | 12 | 120 |
| 690V AC 32A 2 Pole | 856 07 | 10x38mm | 6 | 60 |
| 690V AC 32A 3 Pole | 856 08 | 10x38mm | 4 | 40 |
| 690V AC 32A 4 Pole | 856 09 | 10x38mm | 3 | 30 |
