With CEI, G99, EN50549, NRS, CEI Certificates
SUPERIOR EFFICIENCY
Maximum efficiency of 98.4%
Large string current, compatible with large PV modules
Wide voltage range, compatible with various power grids
Compact for easy installation
HIGH RELIABILITY
IP66 protection level for outdoor installation
Optional: DC/AC Type Il SPD
Optional: AFCI function
INTELLIGENT MAINTENANCE
Power consumption monitoring
Remote configuration and upgrade Quick commissioning via mobile app
Multiple I/O and communication configurations
APPLICATION
Small-sized Industrial and Residential Use

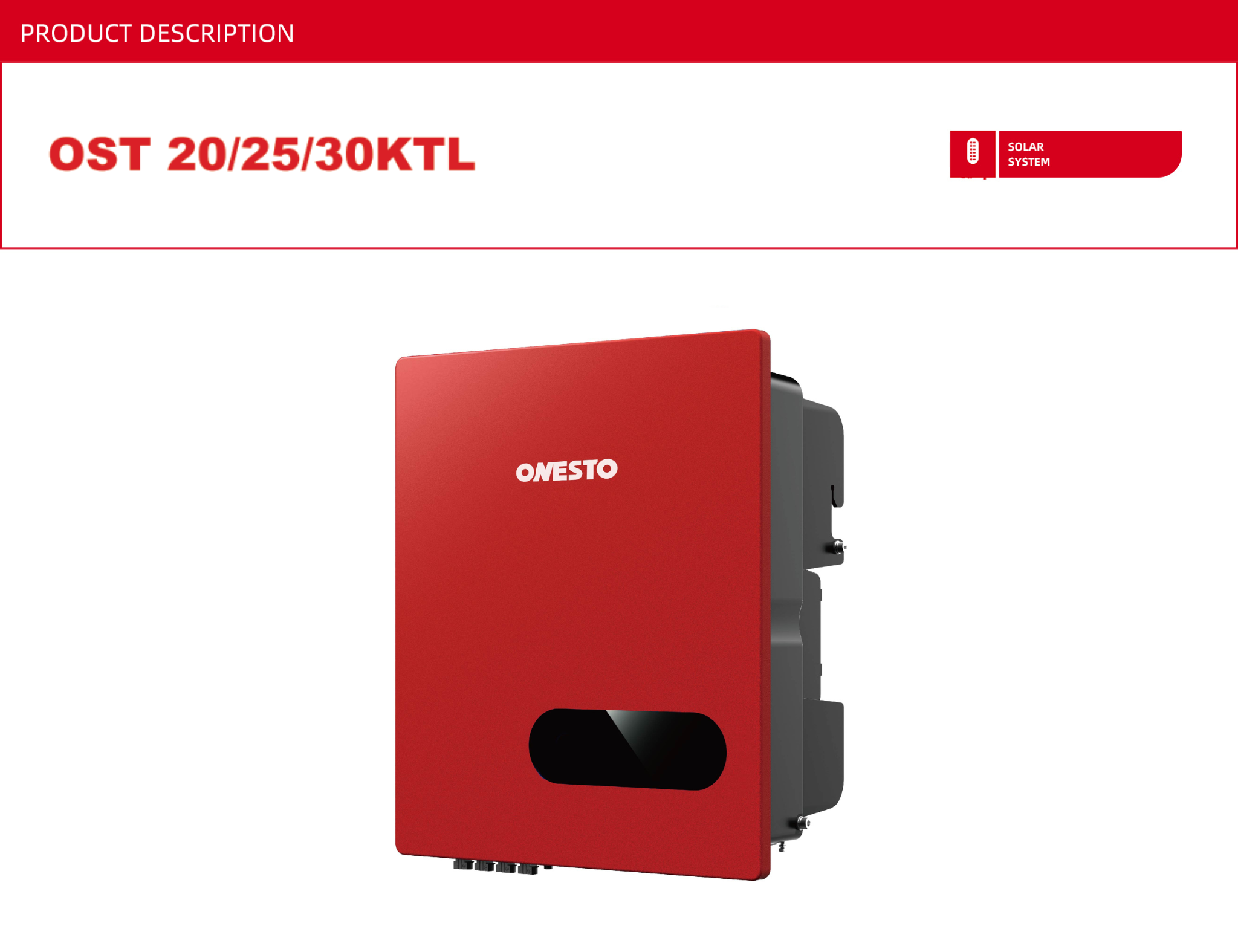

Our 20kW, 25kW, and 30kW 3 phase solar inverter with dual MPPTs are designed for small-sized industrial and residential solar systems. These inverters efficiently convert DC power from solar panels into AC power and feature dual MPPT technology, optimizing energy production by managing multiple panel arrays with different orientations or shading conditions. With reliable grid synchronization, these inverters offer high efficiency and ensure stable power supply for both residential and small industrial setups.
| Model | OST 20KTL | OST 25KTL | OST 30KTL | |
| Efficiency | ||||
| Max. Efficiency | 98.4% | |||
| European Efficiency | 98.0% | |||
| Input(PV) | ||||
| Max. Input Voltage | 1100V | 1100V | ||
| Max. PV configuration | 150% | 150% | ||
| Rated Input Voltage | 620V | 620V | ||
| Max. Input Current | 2*30A | 40A/30A | ||
| Max.Short Circuit Current | 2*40A | 50A/37.5A | ||
| Start Input Voltage | 180V | 180V | ||
| MPPT Operating Voltage Range | 160V-1000V | 160V-1000V | ||
| Max. Number of PV Strings | 4 (2/2) | 4 (2/2) | ||
| No. of MPPTs | 2 | 2 | ||
| Output(Grid) | ||||
| Rated AC Active Power | 20,000W | 25,000W | 30,000W | |
| Max. AC Apparent Power | 22,000VA | 27,500VA | 33,000VA | |
| Max. AC Active Power (PF=1) | 22,000W | 27,500W | 33,000W | |
| Max. AC Output Current | 3*33.7A | 3*39.8A | 3*50.2A | |
| Rated AC Voltage | 380V / 400V / 415V, 3W+N+PE | |||
| AC Voltage Range ① | 260V-510V (Adjustable) | |||
| Rated Grid Frequency | 50Hz / 60Hz | |||
| Grid Frequency Range ② | 45Hz-55Hz / 55Hz-65Hz (Adjustable) | |||
| THDI | <3%@Rated Power | |||
| DC Current Injection | <0.5%@Rated Current | |||
| Power Factor | > 0.99 Rated power (Adjustable 0.8 LD – 0.8 LG) | |||
| Protection | ||||
| DC switch | Support | |||
| Anti-islanding protection | Support | |||
| AC overcurrent protection | Support | |||
| AC short circuit protection | Support | |||
| DC reverse connection | Support | |||
| Surge Arrester | AC Type III (Type II optional) / DC Type III (Type II optional) | |||
| Insulation detection | Support | |||
| Leakage current protection | Support | |||
| General | ||||
| Topology | Transformerless | |||
| IP Rating | IP66 | |||
| Night Self Consumption | <1W | |||
| Cooling | Fan cooling | |||
| Operating Temperature Range | -25℃ to +60℃ | |||
| Relative Humidity Range | 0-100% | |||
| Max. Operating Altitude | 4000m | |||
| Noise | <45dB | |||
| Dimensions (W*H*D) | 398mm*460mm*190mm | |||
| Weight | 20kg | 20.3kg | ||
| HMI & COM | ||||
| Display | Wireless & APP +LED, LCD (Optional) | |||
| Communication interface | RS485, Optional: WiFi / GPRS / 4G / LAN | |||
| Certification | ||||
| Safety | IEC62109-1/2 | |||
| Grid / EMC | IEC/EN 61000-1/2/3/4, CEI 021 | |||
| Warranty | 5 Years | |||
